Fully Automatic Wine Cap Assembly Machine
Engineered for luxury spirits, wine, whiskey, and vodka anti-counterfeit closures. Sailwin high-precision wine cap assembly machines integrate multi-bowl vibratory feeding, 12-to-24 station rotary indexing tables, precision pneumatic press-fit tooling, and CCD optical defect inspection, delivering scratch-free handling of anodized aluminum shells, automatic bead valve and glass ball insertion, and an impressive speed of 2,500 to 6,000 caps/hour.
Turnkey Wine Cap Assembly Machine Solutions
Engineered for multi-piece anti-counterfeit wine caps, roll-on aluminum pilfer-proof (ROPP) composite closures, and luxury glass liquor bottle stoppers.

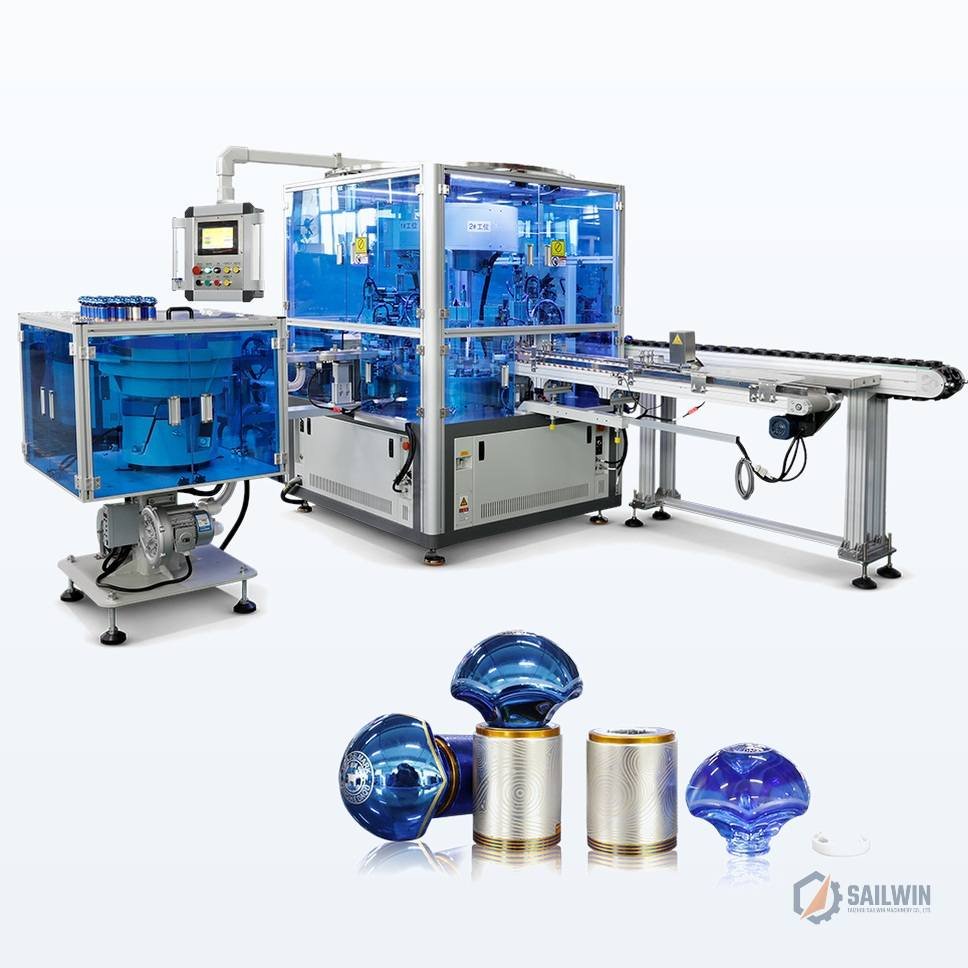

ROTARY AUTOMATION · 4,000 PPHTurnkey Wine Cap Assembly Machine
Full-enclosure multi-station rotary machine equipped with dual vibratory bowls, cam-driven press-fit heads, and soundproof acrylic guards.
- Assembly Speed: 3,000 – 4,500 caps/hour continuous
- Component Handling: Aluminum shell + Plastic threaded insert
- Scratch Protection: Soft polyurethane guide tracks protect printing
- Defect Detection: Dual optical sensors for missing component checks
PRESTIGE SAMPLES · 2-5 PIECESMulti-Piece Wine & Liquor Closure Samples

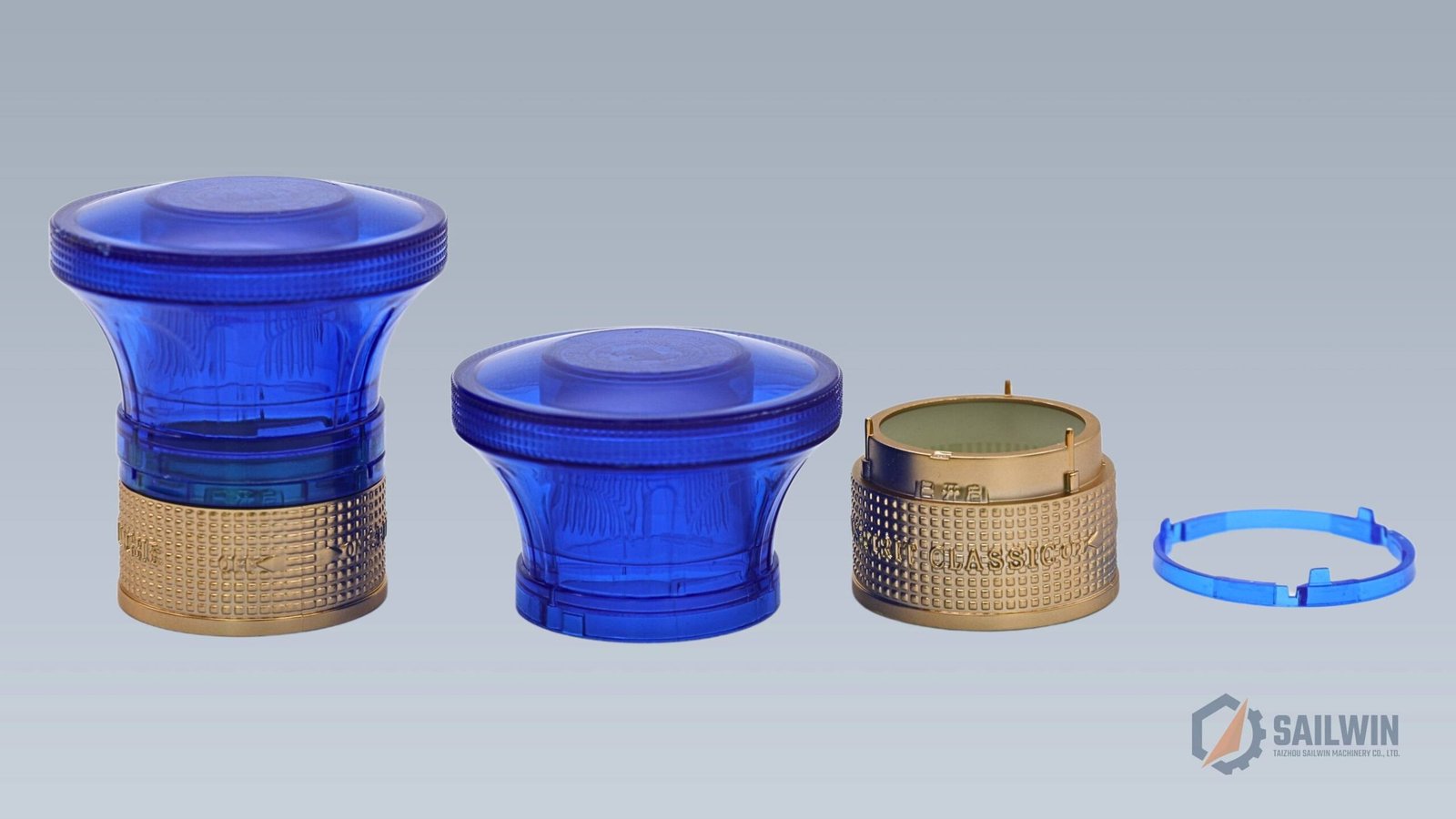

Showcase of assembled high-end spirits closures: non-refillable valve caps with internal glass balls, gold hot-stamped tear rings, and embossed aluminum capsules.
- Anti-Refill System: Ceramic / glass ball non-return valve
- Closure Diameters: 28mm to 36mm standard liquor necks
- Press Alignment: Concentricity controlled within ±0.03mm
- Tamper Evidence: In-line ultrasonic bridge welding

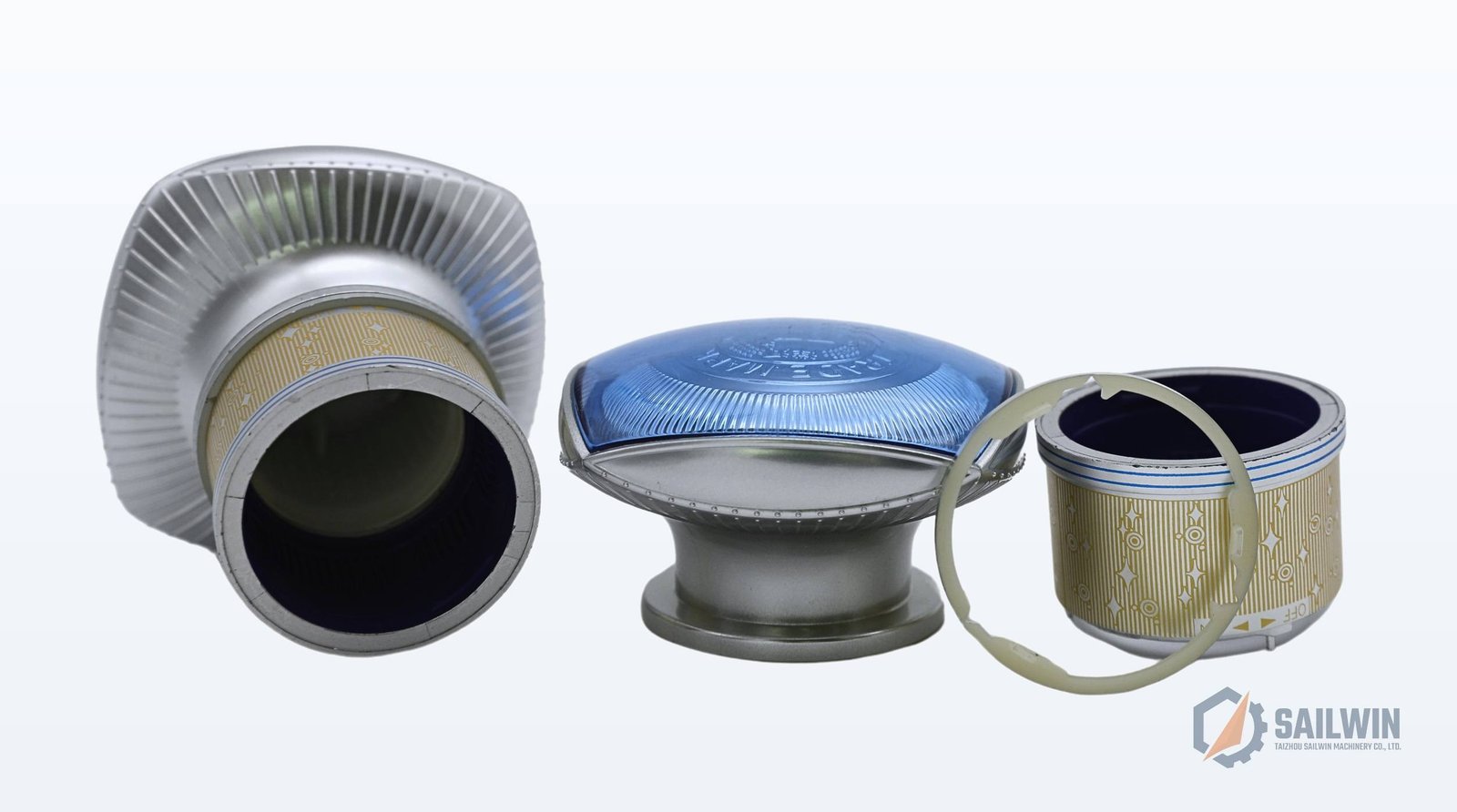

COMPOSITE · METAL + PLASTICKnurled Metal Composite Closures
Engineered for luxury whiskey, cognac, and gin packaging. Combines heavy zinc-alloy knurled metal collars, synthetic cork stems, and glossy plastic domes.
- Heavy Metal Collet: Knurled ring automatic orientation
- Cork Insertion: Controlled pneumatic press stroke without shaving
- Bonding Method: Hot-melt adhesive dispenser / mechanical snap
- Aesthetic Standard: Zero marring on brushed metallic finishes
HIGH-SPEED · 6,000 PPHHigh-Speed Wine Cap Assembly Line
Flagship high-output machine equipped with 3 vibratory orienting bowls, linear air conveyor feeds, and rotary crimping station reaching 6,000 caps/hour.
- Capacity: 5,000 – 6,000 caps/hour automated assembly
- Control System: Siemens PLC with 10-inch color touchscreen
- Vision Inspection: CCD camera checks liner presence & crimp seal
- Rejection System: Pneumatic air-blast diverter for non-conforming caps
| Model Designation | Cap Construction Type | Assembly Capacity | Assembly Stations | Defect Inspection | Main Motor Power | Air Consumption | Action |
|---|---|---|---|---|---|---|---|
| SW-WCA-2500 | 2-Piece Aluminum-Plastic Screw Wine Cap | 2,500 – 3,000 PPH | 12 Stations | Optical Fiber Sensor | 1.5 kW (220V/380V) | 0.4 – 0.6 m³/min | |
| SW-WCA-4000 | 3-Piece Anti-Counterfeit Valve Wine Cap | 3,800 – 4,500 PPH | 16 Stations | Dual CCD Vision Camera | 2.2 kW (380V 3P) | 0.6 – 0.8 m³/min | |
| SW-WCA-6000 | 4-to-5 Piece Non-Refillable Spirits Closure | 5,500 – 6,000 PPH | 24 Stations | 3-Camera 360° Vision Inspection | 3.5 kW (380V 3P) | 0.8 – 1.0 m³/min | |
| SW-WCA-CRIMP | Multi-Head Rotary Aluminum Crimping Unit | 4,000 – 8,000 PPH | 8 Crimping Heads | Height & Torque Sensor | 2.2 kW (380V 3P) | 0.5 – 0.7 m³/min |
Need Wine Cap Component Assembly Feasibility Assessment or Video Trial?
Send us your physical cap components or 3D drawings. Our automation engineers configure custom vibratory bowls and tooling fixtures within 24 hours.
Engineering Precision: Multi-Part Press-Fit & Optical QC
Anti-counterfeit wine closures require microscopic alignment across aluminum shells, plastic threaded sleeves, glass ball valves, and tamper rings without surface scratching.

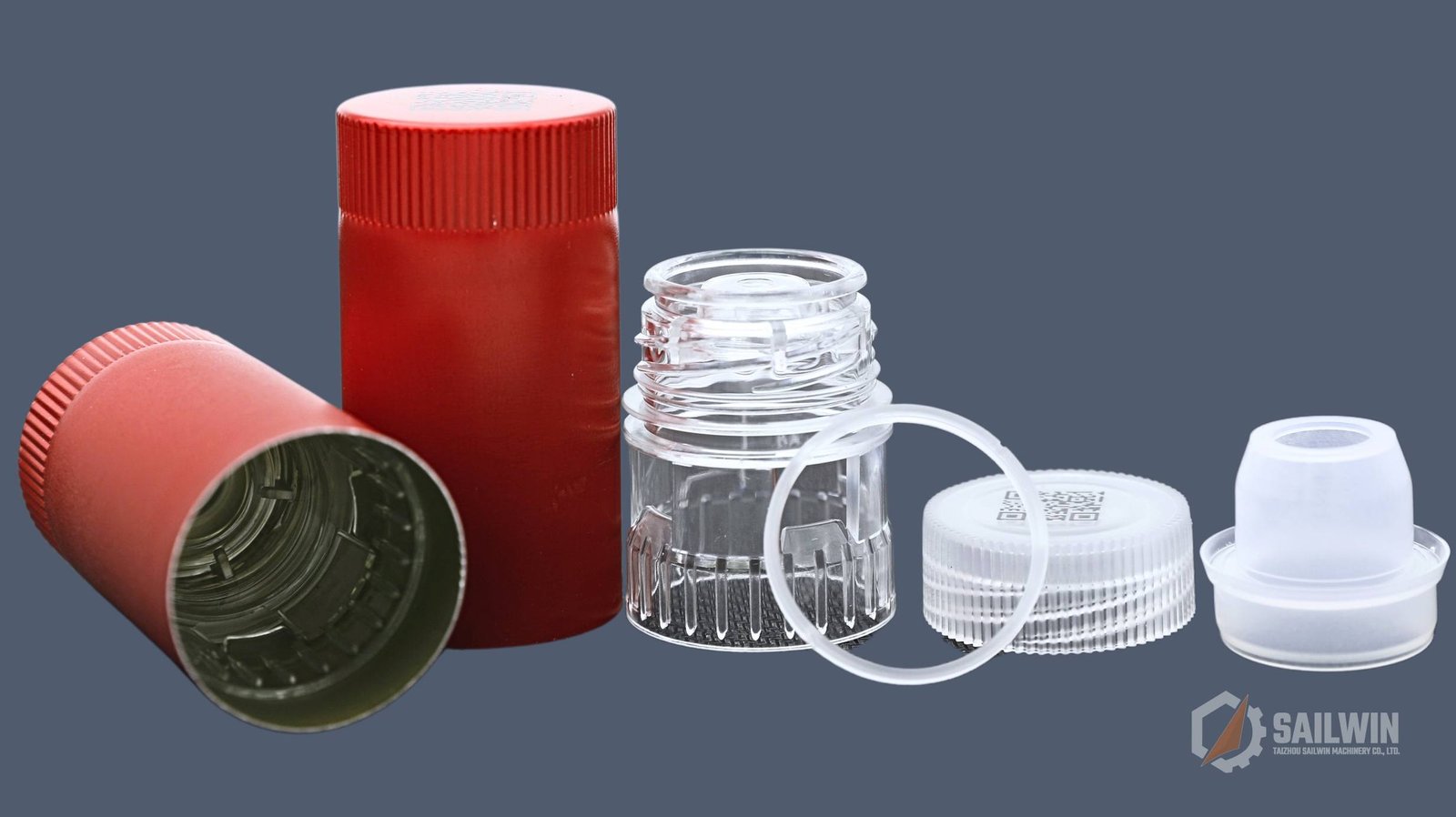

EXPLODED ASSEMBLY COMPONENTSExploded Anti-Counterfeit Cap Components
Luxury liquor closures integrate up to 5 distinct components: Deep-drawn aluminum shell, internal threaded plastic core, anti-refill glass ball, bead valve seat, and drop-down tamper ring. Sailwin machines assemble these sub-assemblies sequentially in a continuous circular process.
- • Anti-Refill Non-Return Valve: Smooth glass ball insertion tested for zero liquid back-flow.
- • Tamper-Evident Latch: Precision micro-bridge engagement prevents shell removal before opening.
- • Tight Concentricity: All stations calibrated to ±0.03mm radial concentricity.

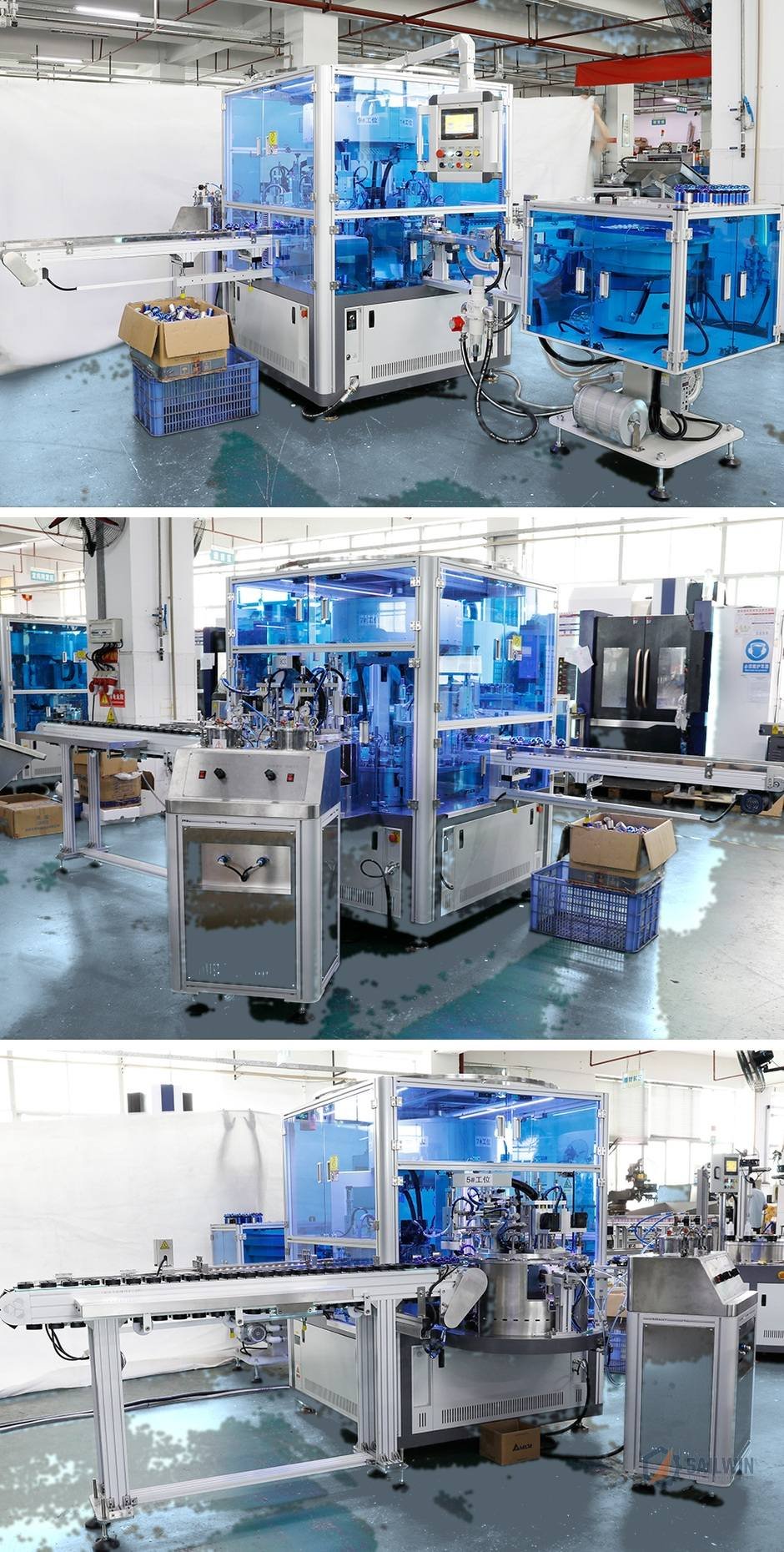

TRI-VIEW ENGINEERING LAYOUTTri-View Industrial Layout & Feeder Integration
Our tri-view engineering schematic illustrates the compact, ergonomic footprint of the turnkey wine cap assembly line. Designed for straightforward integration between upstream injection presses and downstream carton packing belts.
- • Compact Footprint: 3.2m x 2.4m total floor area including 3 bulk storage hoppers.
- • Ergonomic Loading: Low-profile bulk hoppers allow waist-height operator loading.
- • Quick-Change Tooling: Complete cap diameter changeover within 45 minutes.

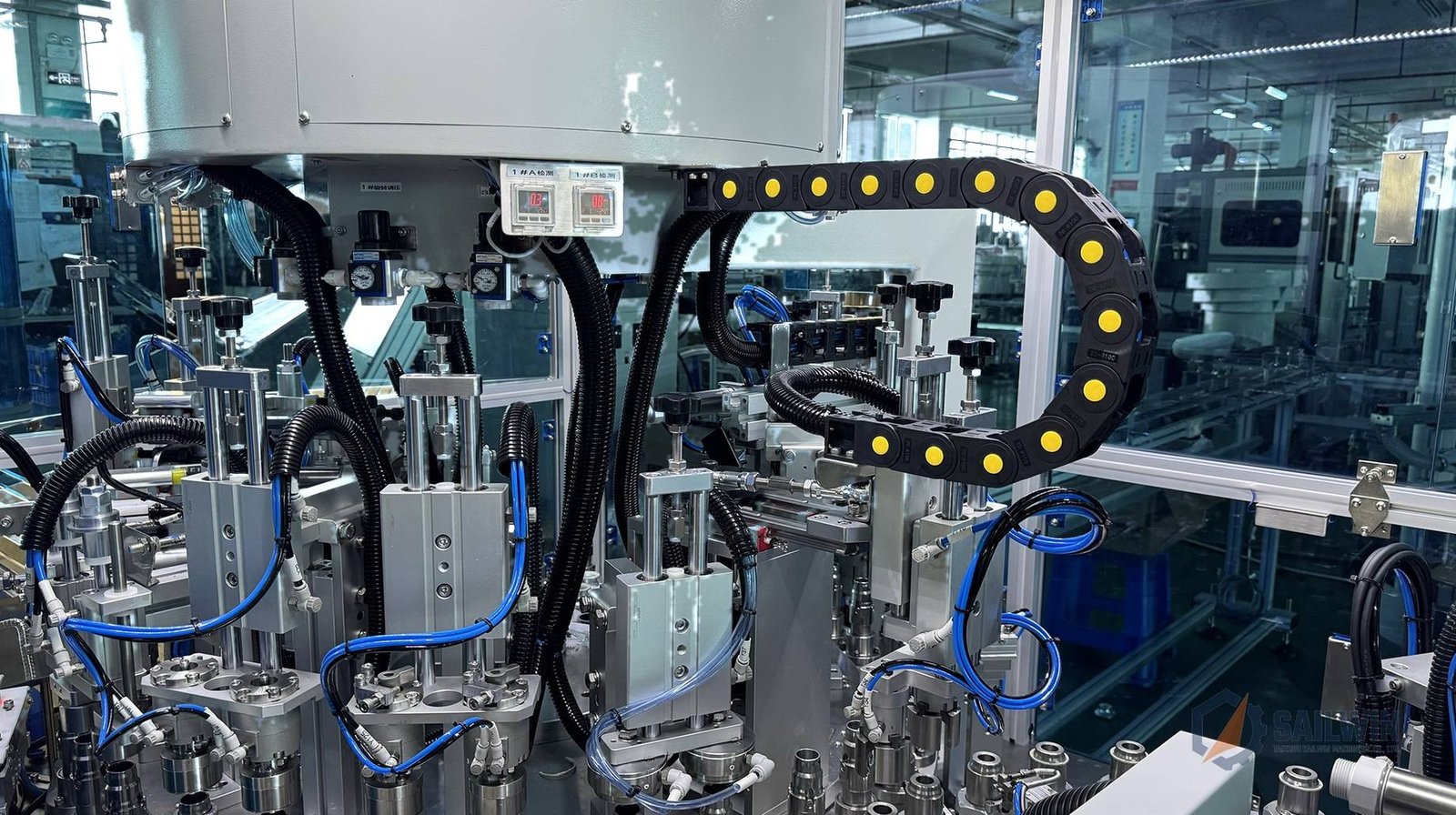

ROTARY INDEXING TABLEHigh-Rigidity Rotary Indexing Dial Table
Driven by a heavy-duty globoidal cam indexing divider, the rotary dial table delivers smooth, shock-free acceleration and deceleration even at 100 indexes per minute. Flexible energy chain carriers route pneumatic signals without fatigue fracture.
- • Repeatability: Indexing repeatability within ±15 arc-seconds (±0.01mm).
- • Hardened Dial Plate: Aviation-grade aluminum alloy dial plate with nickel plating.
- • Positive Pneumatic Clamping: Part nests clamp components securely during press fit.

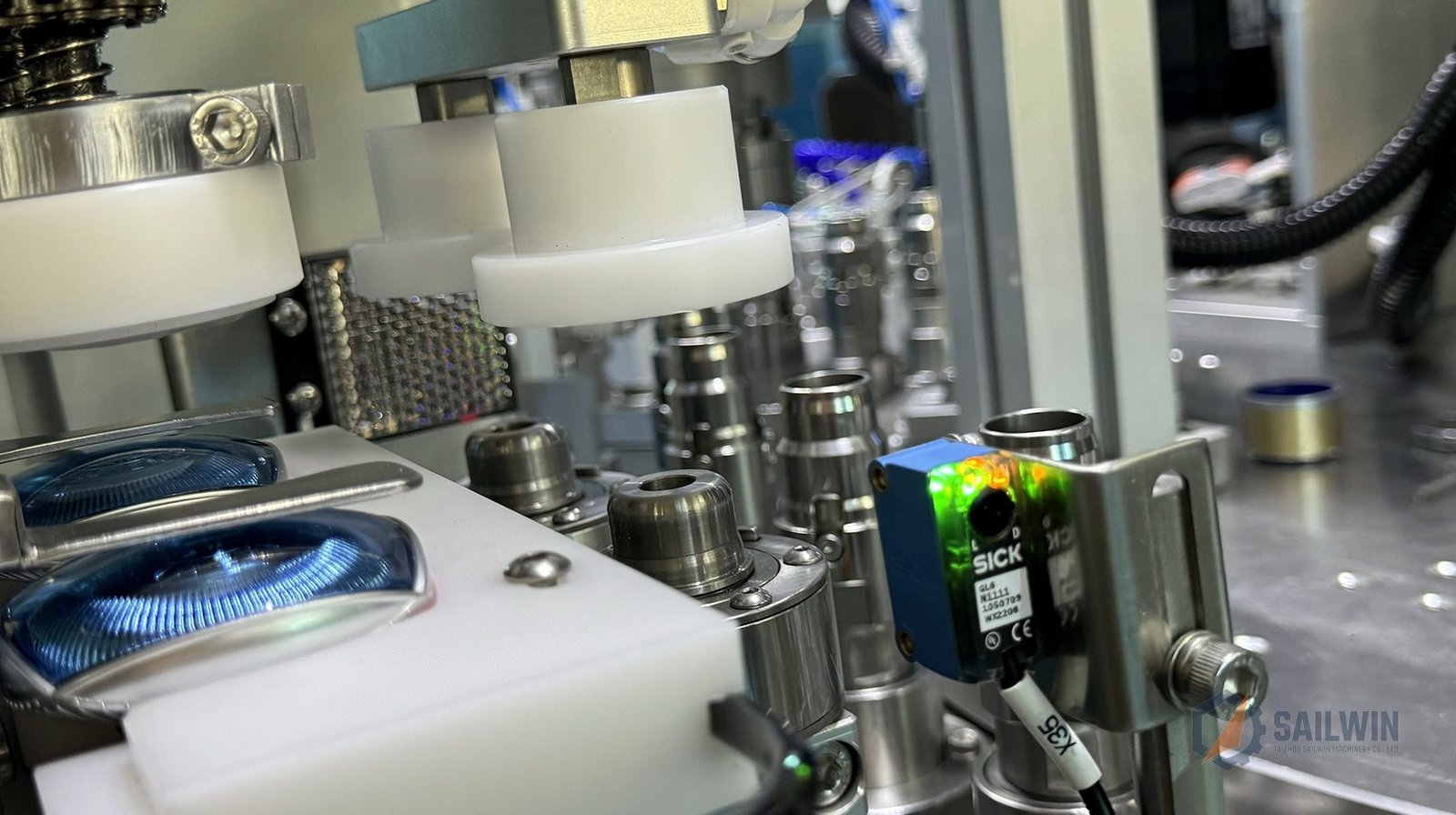

PRESS-FIT TOOLING HEADServo-Pneumatic Controlled Insertion Heads
Mating the plastic inner plug into the deep-drawn aluminum shell requires calibrated downward force. Excessive pressure deforms the aluminum skirt; insufficient pressure leads to cap separation on bottling lines.
- • Pressure Regulation: SMC precision pneumatic regulators control insertion depth within ±0.05mm.
- • Non-Marring Fixtures: Tooling heads machined from POM / Peek to avoid anodizing scratches.
- • Seating Confirmation: Optical sensors confirm 100% full engagement before crimping.
PROGRESSIVE ASSEMBLY FLOWStep-by-Step Progressive Assembly Flow
From outer shell feeding to final boxed discharge, each cap passes through 6 automated verification checkpoints: 1) Shell feed & orientation, 2) Inner plug insertion, 3) Glass ball dropping, 4) Valve seat press, 5) Rotary aluminum rim crimp, 6) CCD vision inspection & auto-reject.
- • Zero Missing Parts: Multi-sensor interlock stops the line if any component is absent.
- • Integrated Rotary Crimper: Multi-roller rotary crimping curls aluminum edge securely around plastic core.
- • Yield Rate: Commercial production achieves verified ≥ 99.9% first-pass yield.
Scratch-Free Feeding & Multi-Sensor QC Surveillance
Delicate anodized and hot-stamped aluminum shells demand gentle feeding. Explore our sound-damped vibratory orienting bowls, vertical component elevators, and infrared detection stations.
Large-Capacity Bulk Storage Hoppers

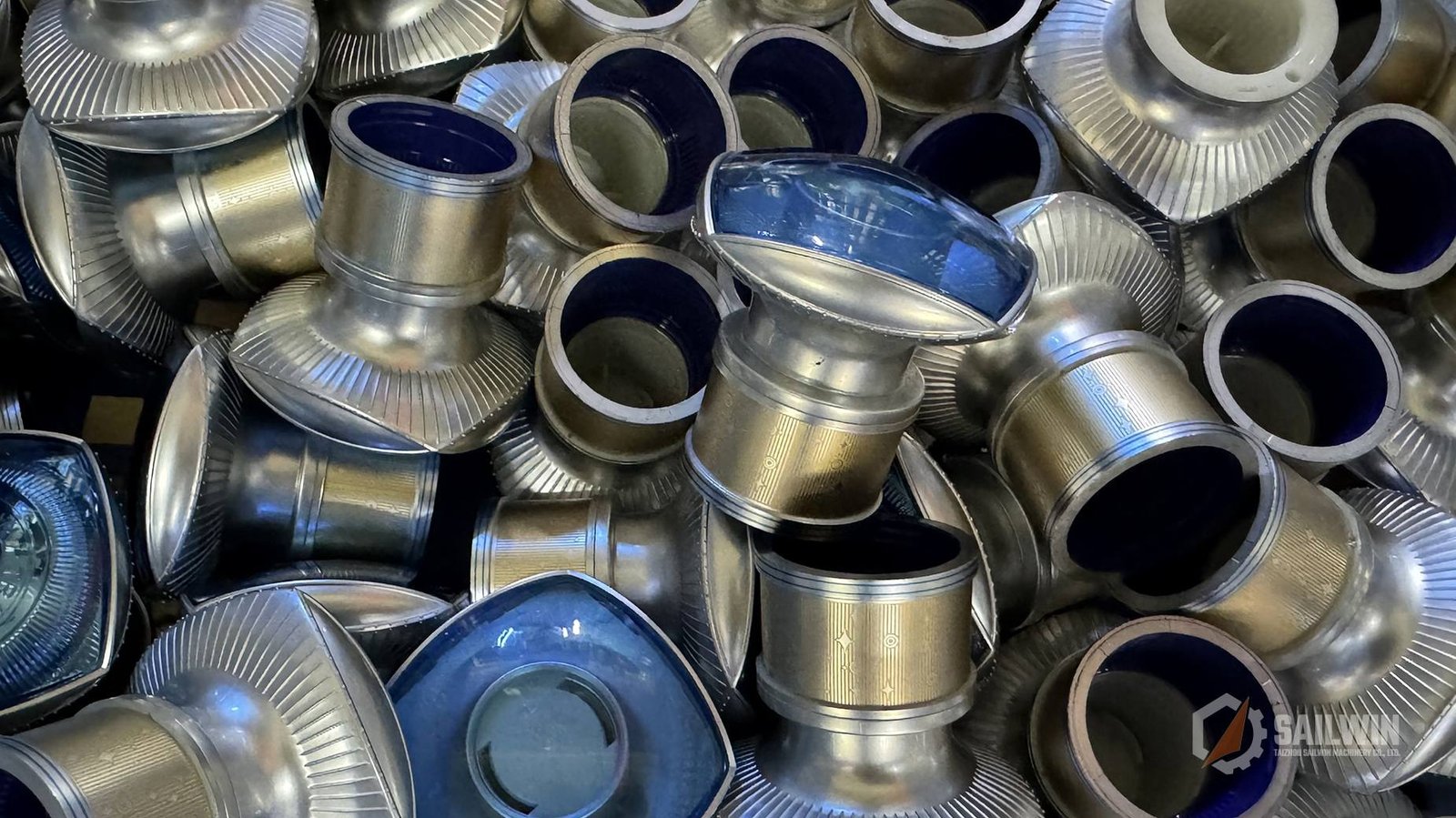

Stainless steel 304 bulk hoppers with polyurethane internal linings. Holds over 10,000 aluminum shells to ensure 2 hours of unattended continuous assembly.

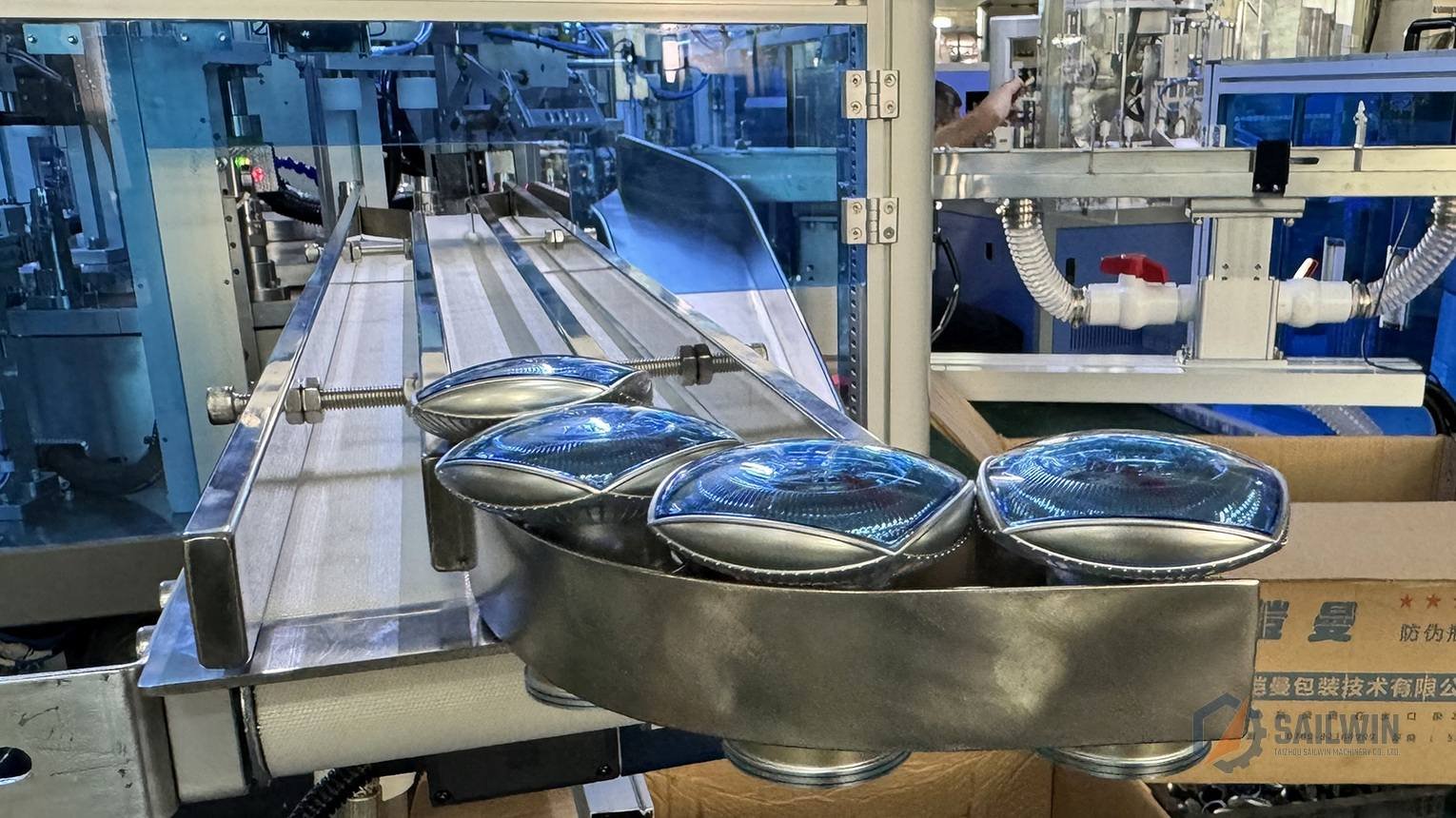

Vertical Parts Cleated Elevators
Sensor-controlled cleated belt elevators deliver components on-demand into vibratory bowls, preventing parts from tumbling or scratching each other.

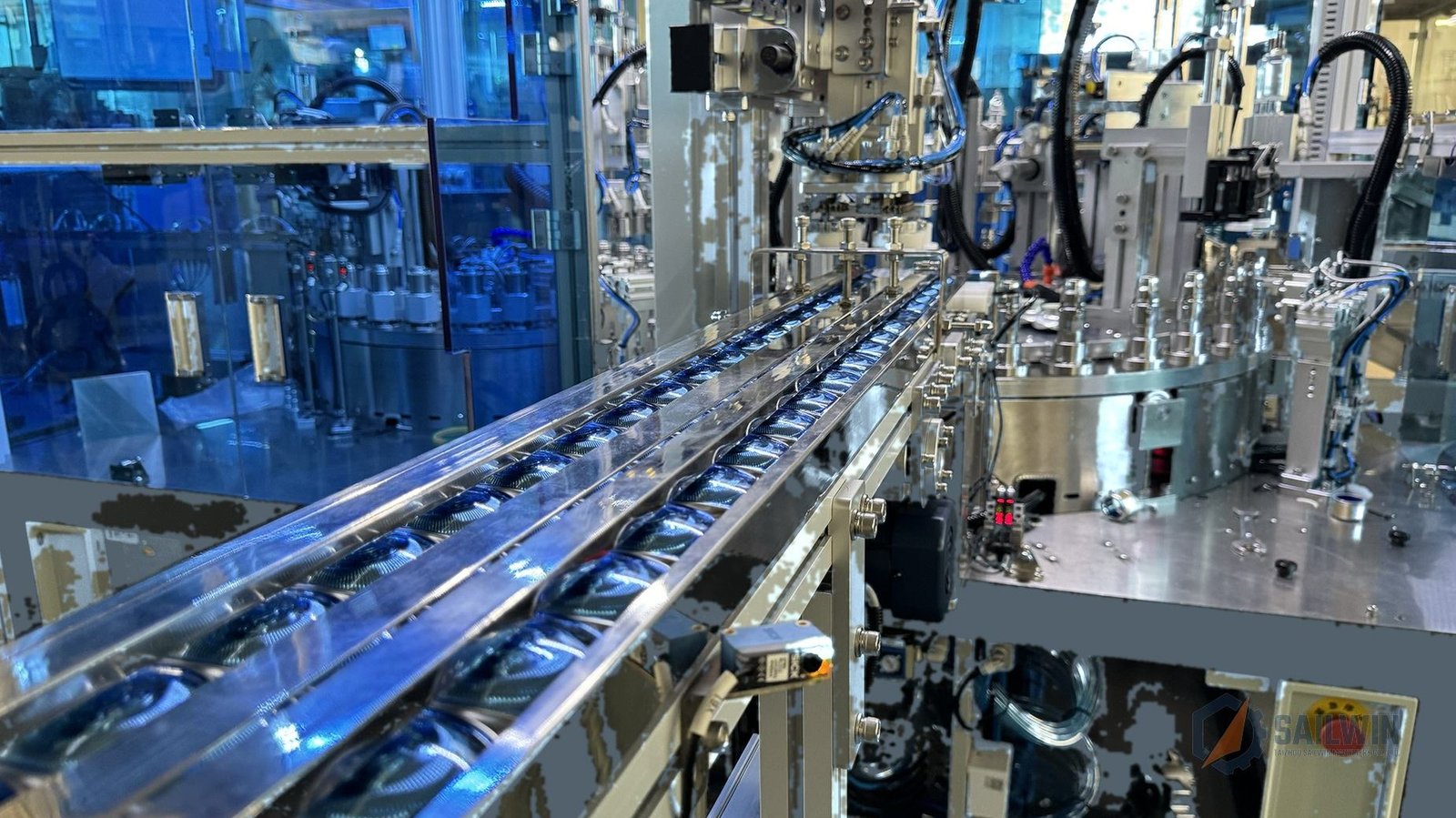

Precision Vibratory Feeder Bowls
Custom-machined spiral tracks orient aluminum shells and plastic inserts face-up at 120 parts/min, assisted by digital variable frequency controllers.

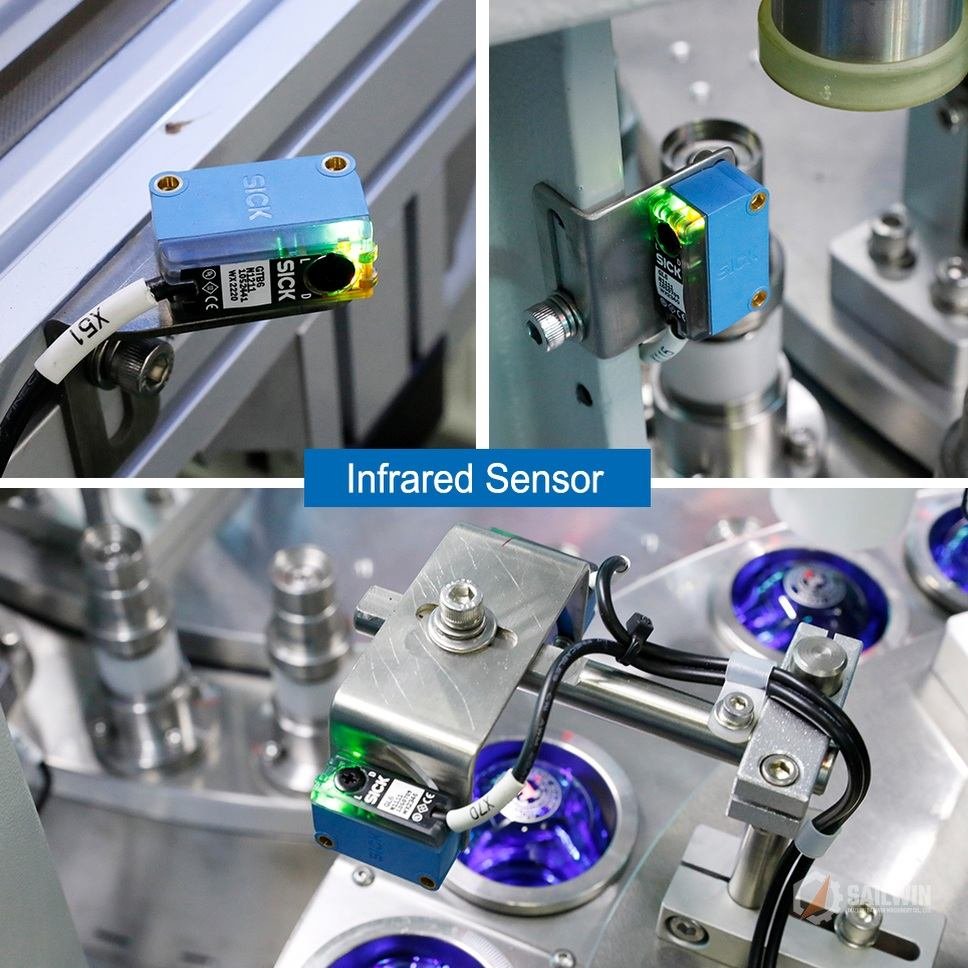

Multi-Point In-Line Sensor Checks
High-speed fiber-optic and infrared sensors monitor component presence, seating depth, and glass ball inclusion at every rotary indexing station.

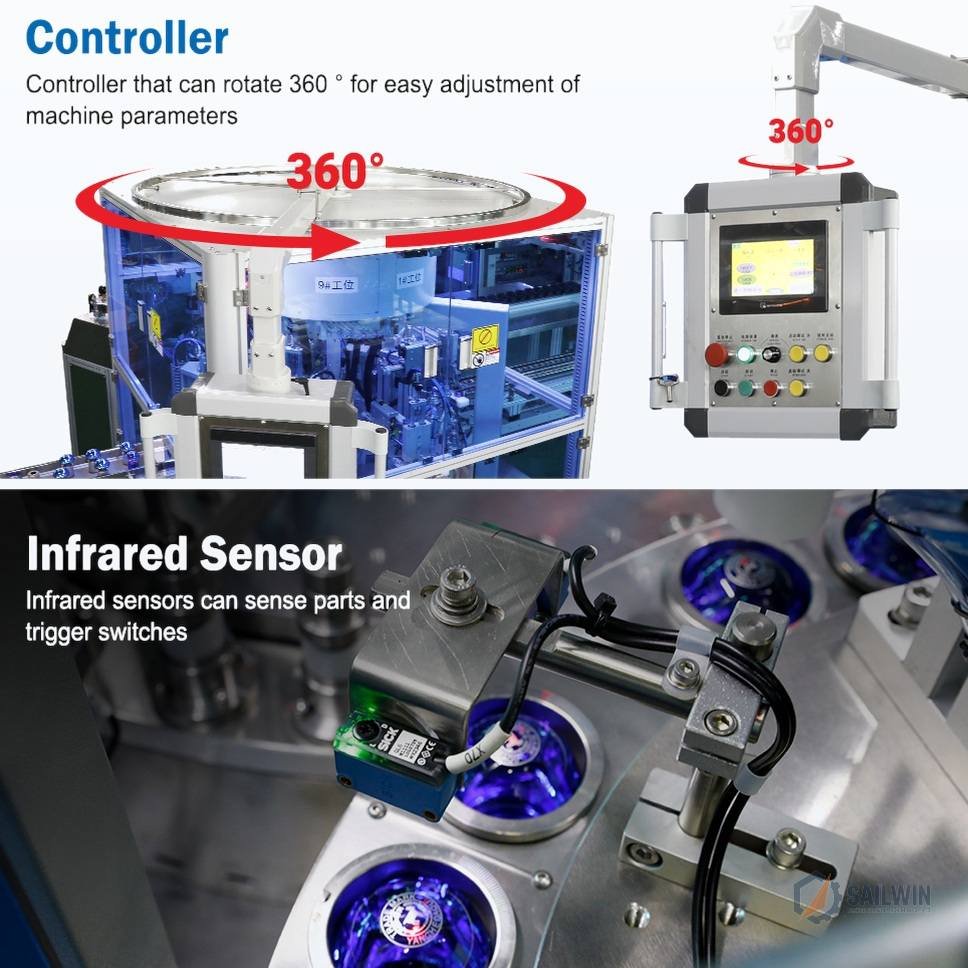

Smart Touch Controls & Rotary Crimping Stations
Explore the precision mechanical architecture behind Sailwin wine cap machines: Siemens S7-1200 PLC control, soundproof safety enclosures, multi-head rotary crimping, and discharge sorting.
Touchscreen Operating Terminal
Color 10-inch HMI touchscreen interface with recipe management, real-time speed monitoring, sensor diagnostic screens, and batch counters.

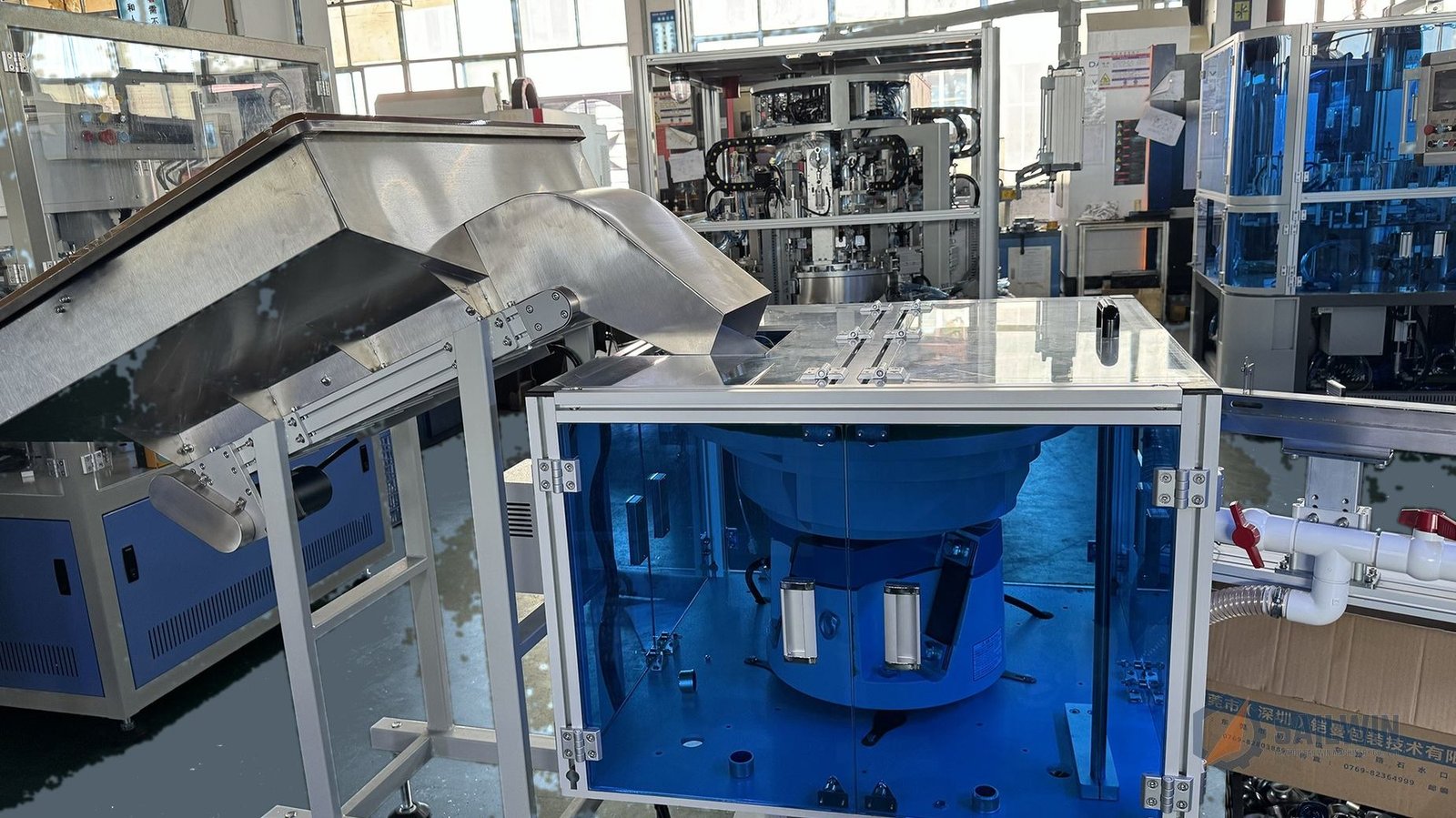

Acoustic Safety Interlock Guard
Heavy transparent acrylic safety enclosure reduces plant noise below 72 dB(A). Safety door switches instantly pause the line upon opening.

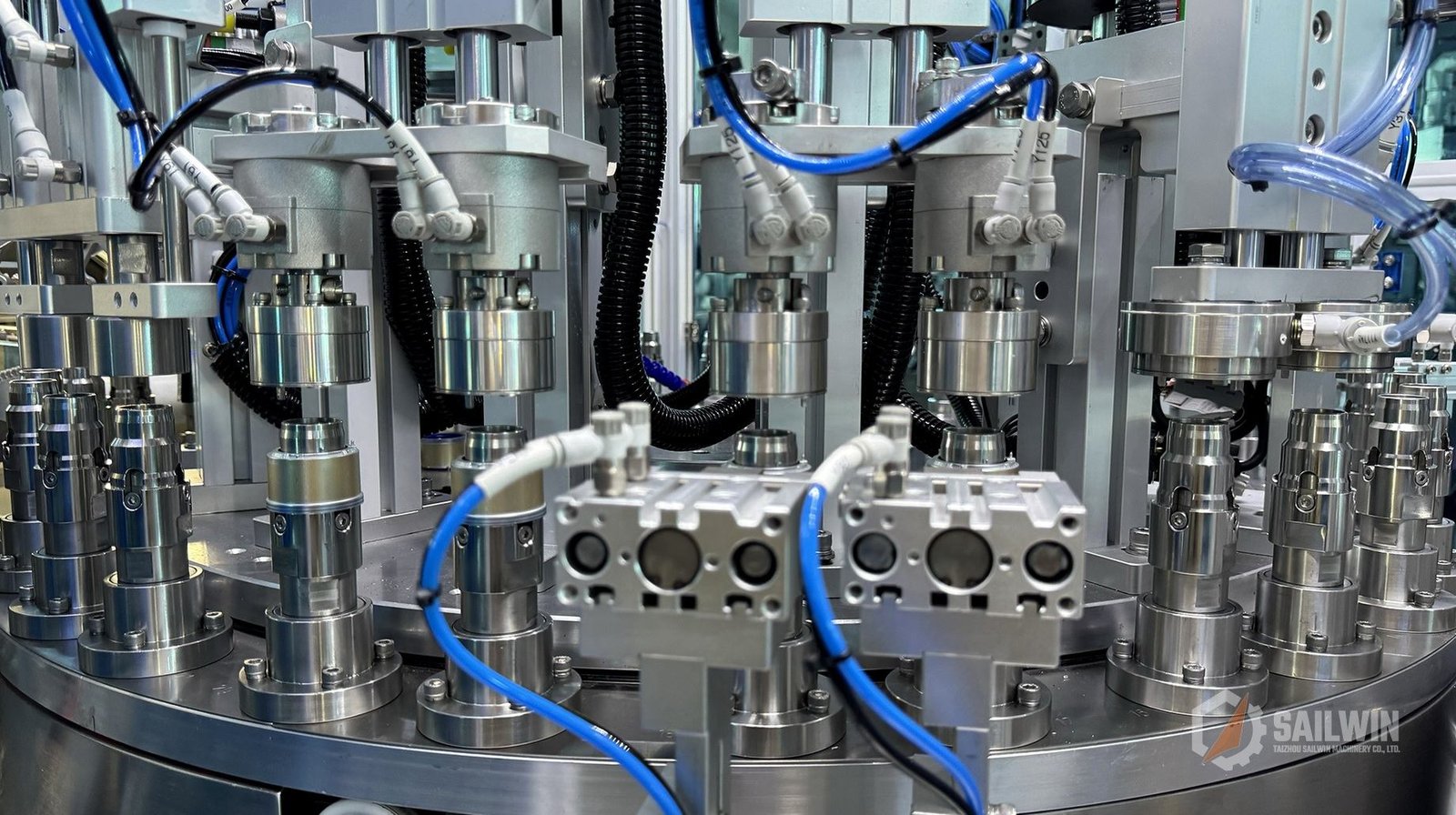

Multi-Head Rotary Crimping Station
Hardened roller crimping heads curl the lower edge of the aluminum shell under the plastic core, creating a permanent, tamper-resistant seal.

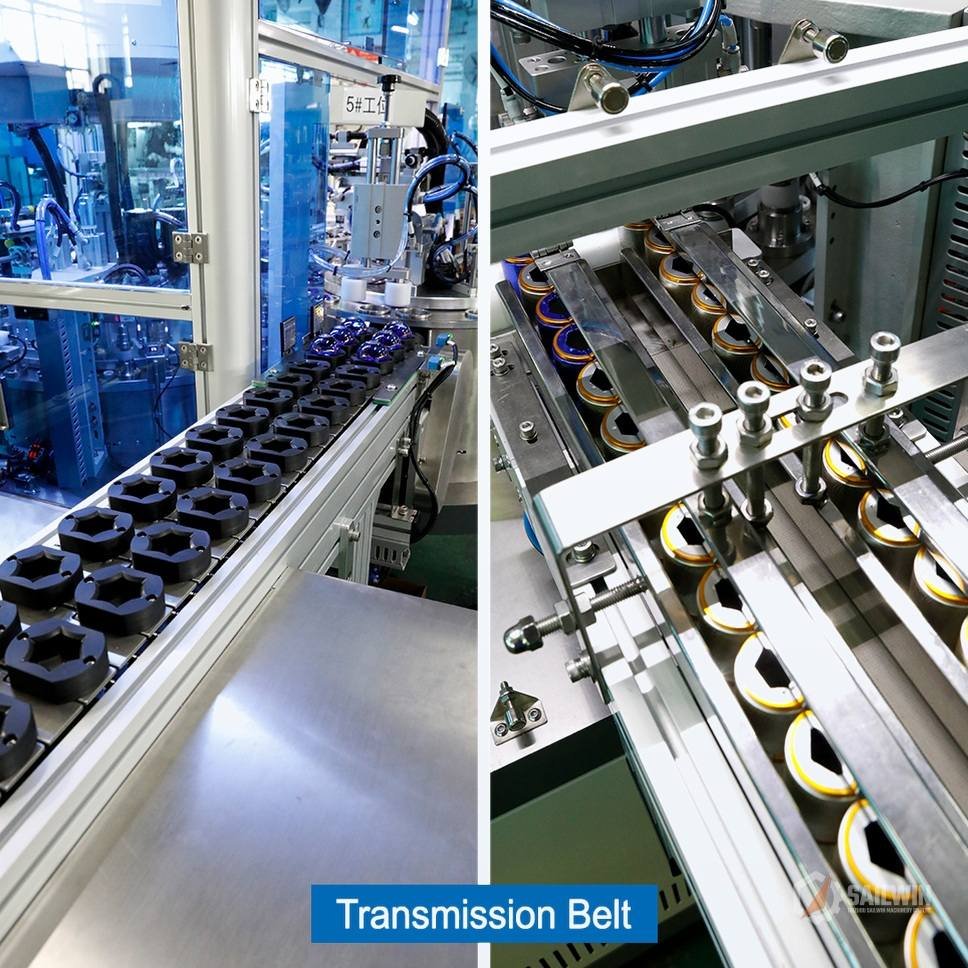

Discharge Conveyor & Rejection Track
Dual-lane linear transmission belt with high-speed pneumatic blow-off diverter that separates conforming caps from flagged defective assemblies.
Industry Applications & Machinery Navigation Hub
Engineered for luxury spirits, vintage wine bottles, whiskey stoppers, and non-refillable tequila caps, supported by our comprehensive cap automation portfolio.

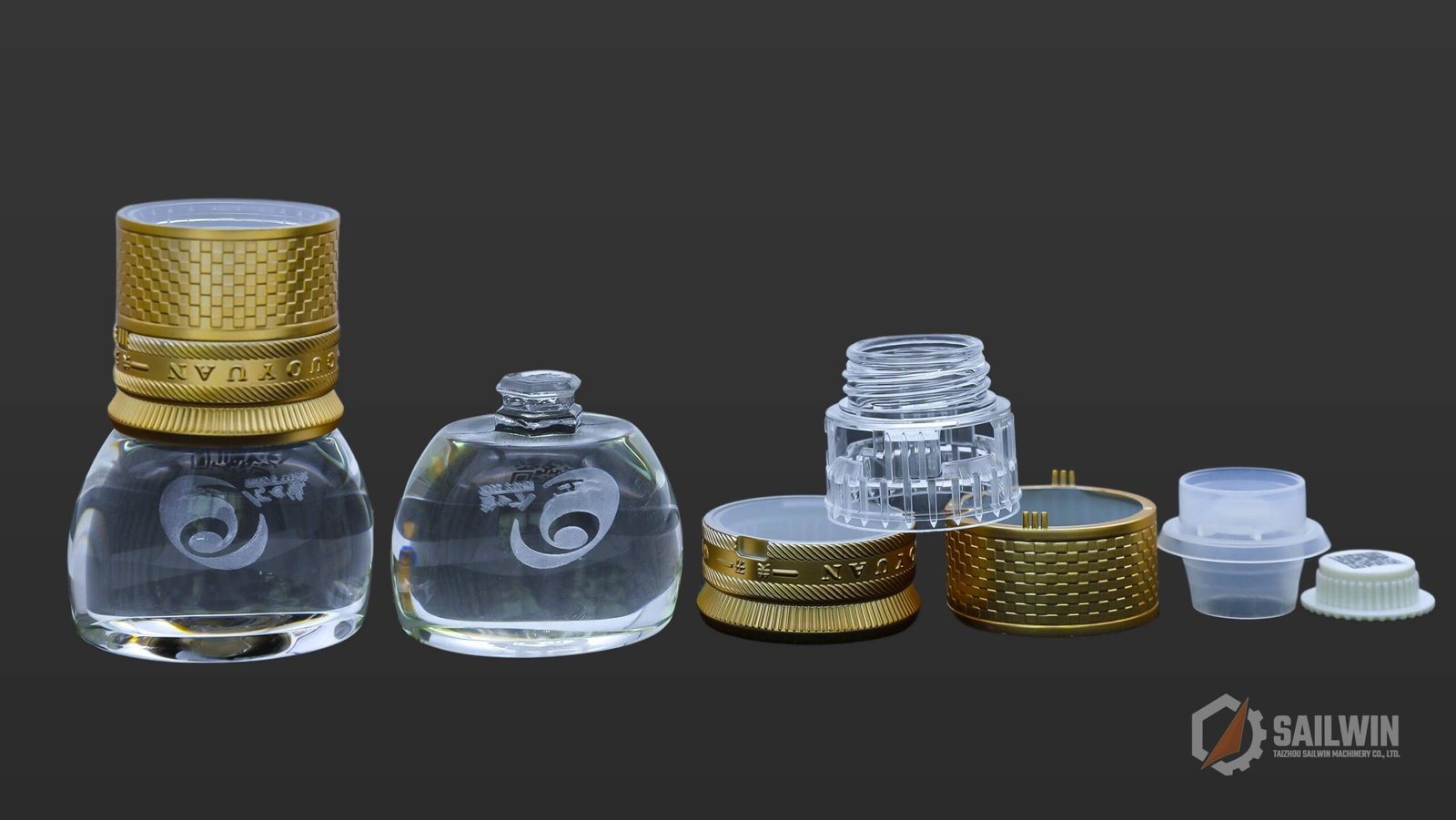

Luxury Glass Bottle Spirits Closures

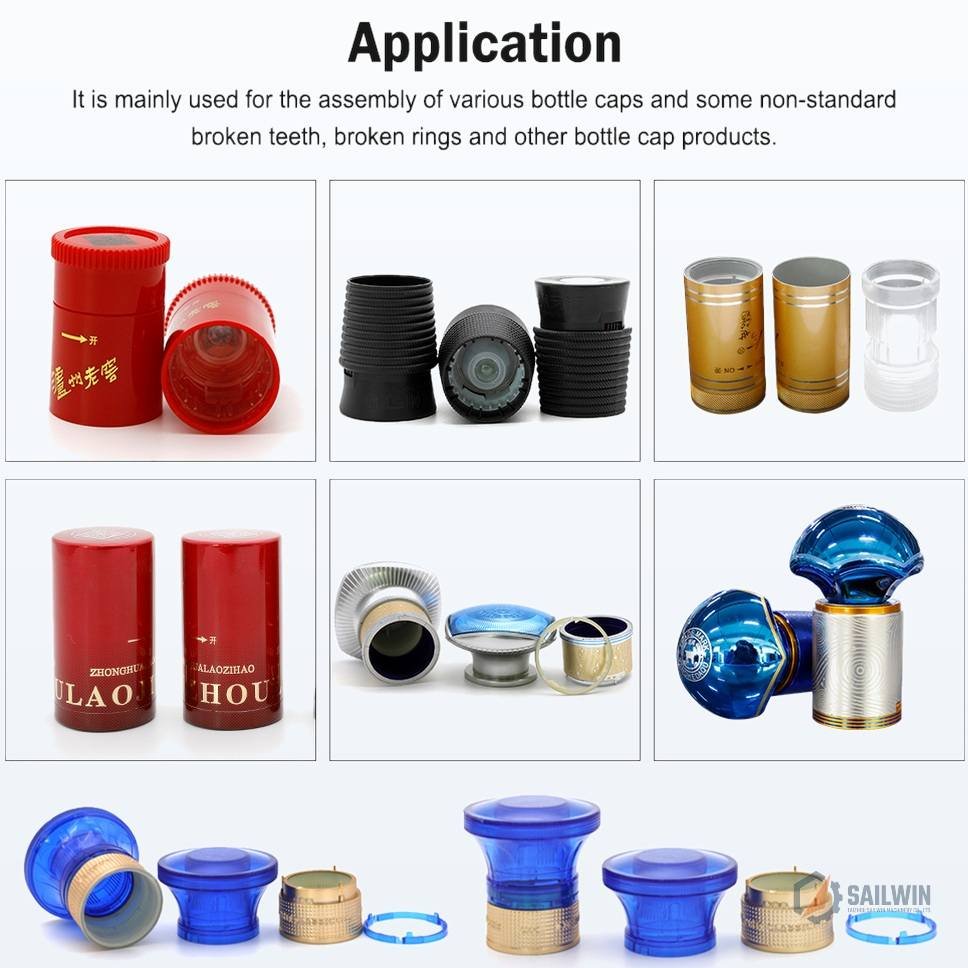

Showcase of commercial vodka, gin, whiskey, and wine bottles capped with Sailwin-assembled aluminum-plastic anti-counterfeit closures. Flawless surface gloss, tight crimp borders, and smooth unscrewing experience.
Target Liquor Packaging Disciplines
Vodka, whiskey, wine, tequila, and brandy anti-counterfeit bottle closures.
Non-Refillable Vodka Caps
Multi-piece closures featuring internal glass balls and anti-siphon valves that prevent fraudulent refilling with cheap spirits.
ROPP Composite Wine Caps
Roll-on pilfer-proof aluminum capsules combined with internal plastic threads and Saran/tin liners for zero oxygen ingress.
T-Top Composite Bar-Tops
Prestige wooden/metal tops assembled onto synthetic or micro-agglomerated cork shanks with automated press-fitting.
Directional Liquor Pourers
Integrated plastic pour spouts with drop-ring breakable bridges and anodized aluminum sleeves for smooth bar dispensing.
ROI Payback within 7 Months for Leading Spirits Converter
A prominent Latin American wine and tequila packaging converter commissioned 2 Sailwin SW-WCA-4000 assembly machines to replace manual manual assembly benches. Operating at 4,200 caps/hour, the machines reduced assembly defect rates from 3.2% down to 0.04%, saved 14 manual operators per shift, and fully paid back the capital investment in under 7 months.
Downstream Cap Machinery & Injection Tooling
Explore rotary multi-piece assembling machines, cap lining machines, and injection tooling hubs.
Rotary Cap Assembling Machine
High-speed rotary assembling machine for sports push-pull caps, motor oil telescopic spouts, and flip lids (3,000–8,000 PPH).
Cap Automation Machinery Hub
Explore rotary lining machines, slitting/folding machines, 5-gallon labeling machines, and feeding automation.
Cosmetic Closure Molds
Luxury perfume over-caps, skincare cream jars, and 2K dual-color rotary core-back molds with optical mirror finish.
Plastic Injection Molds Hub
Explore all 9 closure categories, preform tooling systems, and custom precision plastic injection tooling.
Frequently Asked Questions on Wine Cap Assembly Machines
Explore engineering insights regarding scratch-free handling of anodized aluminum shells, modular diameter changeovers, optical glass ball detection, and commercial ROI calculations.
Luxury wine and spirits closures feature delicate hot-stamped branding, embossing, and high-gloss anodizing that easily scuffs:
- Polyurethane-Lined Tracks: All vibratory bowl tracks, linear gravity chutes, and rotary dial pockets are lined with food-grade soft polyurethane or nylon.
- Gentle Vibratory Tuning: Digital variable frequency controllers maintain low-amplitude micro-vibrations, preventing aggressive tumbling inside storage hoppers.
- Non-Metallic Press Heads: Assembly punch tooling is precision-machined from engineering POM and Peek polymers to prevent metal-on-metal scraping.
Yes. Sailwin machines are built on a flexible modular platform to accommodate product portfolio changes:
- Modular Quick-Change Nests: The rotary dial plate uses quick-release pins allowing all 16 to 24 part nests to be swapped within 25 minutes without hand tools.
- Adjustable Track Widths: Vibratory orienting rails and elevator chutes feature calibrated micrometer adjustment knobs for diameter transitions (28mm to 38mm).
- PLC Recipe Storage: Press-fit stroke heights and pneumatic timing are saved in Siemens PLC recipe profiles for instant one-touch changeover.
Missing a glass ball ruins the anti-refill functionality of a high-value spirits closure:
- Dedicated Micro-Feeder: Glass or ceramic balls are sorted via a specialized precision vibratory track with vacuum-assisted singularization.
- Dual Sensor Verification: Optical fiber sensors confirm the ball's presence inside the plastic cage both before and immediately after press-fitting.
- High-Speed Air Ejection: Any cap missing an internal component is automatically diverted into a locked reject bin, preventing defective caps from reaching packing.
The SW-WCA-4000 represents the optimal balance of throughput and flexibility for medium-to-large wine cap converters:
- Output Speed: 3,800 to 4,500 assembled caps per hour under continuous commercial operation.
- Power Consumption: 2.2 kW main drive motor (380V 3-Phase, 50/60 Hz; optional 220V/480V global voltage matching).
- Compressed Air Demand: 0.6 – 0.8 m³/min at 0.6 – 0.7 MPa clean, dry compressed air.
Yes, Sailwin supplies full turnkey packaging automation systems:
- Turnkey Upstream Integration: Large 10,000-piece bulk storage hoppers, cleated vertical elevators, and acoustic sound enclosures are included.
- Downstream Packing: Automatic carton counting diverters, box indexing tables, and in-line bag sealing machines are fully synchronized.
- Global Commissioning: Our automation technicians provide on-site overseas installation, training, and remote diagnostic camera support.
Need Wine Cap Assembly Feasibility DFM or Vibratory Bowl Layout?
Our automation engineering directors evaluate cap samples, shell dimensions, and assembly sequences within 24 hours.
