5-Gallon Non-Spill Cap Labeling Machine & Ultrasonic Sealer
Engineered for 5-gallon (18.9L) commercial drinking water drum refilling plants. Sailwin fully automatic 5 gallon cap labeling machines integrate bulk elevator cap feeding, hygienic peel-off sticker labeling, foam gasket insertion, and ultrasonic or heat-shrink tamper-evident sealing, delivering 1,500 to 3,600 caps/hour with ±0.5mm labeling accuracy and 100% dust-proof hermetic protection.
Turnkey 5-Gallon Cap Labeling Machine Portfolio
Engineered for commercial bottled water refilling operations, drinking water plants, and non-spill cap molding factories requiring hygienic sticker labeling, plug wadding, and tamper seals.

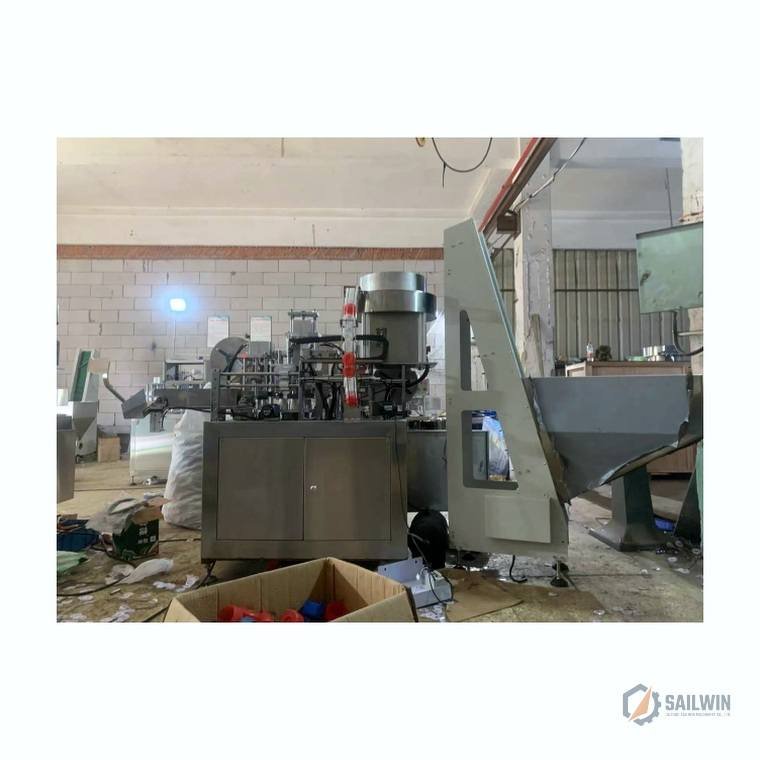

ULTRASONIC · 2,500 PPH5-Gallon Non-Spill Cap Labeler & Ultrasonic Sealer
Flagship integrated machine featuring rotary starwheel cap transfer, vacuum label application on the cap spout hole, and 20kHz ultrasonic hermetic spot welding.
- Throughput: 2,000 – 2,500 caps/hour continuous
- Labeling Accuracy: Concentric positioning within ±0.5mm
- Ultrasonic Power: 20 kHz / 2,000W generator with titanium horn
- Cap Standard: 55mm standard non-spill smart closures

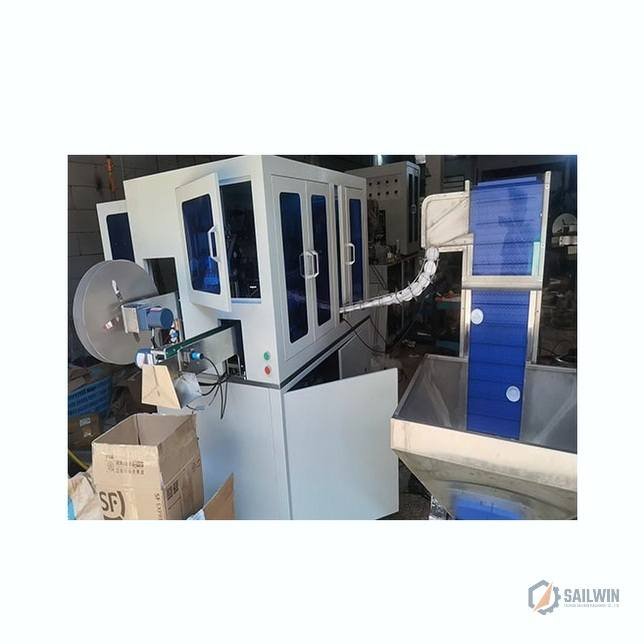

ELEVATOR FEED · 3,000 PPHAutomatic Labeler with Inclined Cap Elevator
Equipped with a ground-level stainless steel bulk storage hopper and cleated inclined elevator belt, providing continuous non-stop cap orientation and label application.
- Production Speed: 2,500 – 3,000 caps/hour rated output
- Hopper Capacity: 5,000 caps bulk storage with low-level sensor
- Cap Orientation: Gravitational centrifugal sorter (zero cap scuffing)
- Label Roll Size: Max 350mm outer diameter reel (up to 8,000 labels)

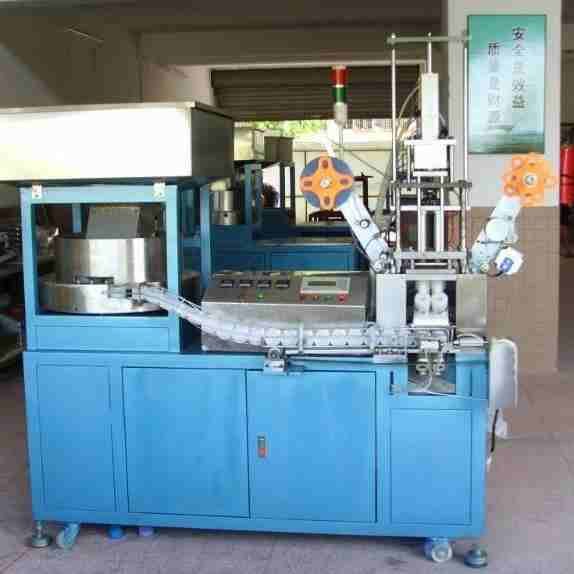

HEAT-SHRINK TUNNELTurnkey Labeling & Heat-Shrink Sealing Line
Integrated line pairing top-sticker labeling with an in-line electric heat-shrink tunnel, shrinking secondary tamper-evident PVC/PET neck sleeves around the cap skirt.
- Dual Security: Top peel-tab label + full tamper-evident shrink band
- Tunnel Temperature: 130°C to 180°C recirculating hot air
- Line Speed: Synchronized 2,400 to 3,600 caps/hour
- Hygiene Standard: Positive air pressure tunnel preventing dust ingress

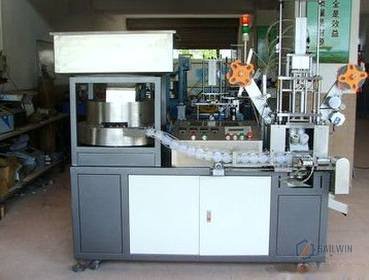

QC CONVEYOR · 3,600 PPH5-Gallon Labeler with Inspection Conveyor
High-output model fitted with extended horizontal inspection conveyor and automated optical sensors, verifying label adhesion and barcode readability before packaging.
- Maximum Output: Up to 3,600 labeled caps per hour
- Sensor Detection: Optical reflective sensor detects missing labels
- Discharge Rejection: Pneumatic diverter gate sends rejects to bin
- Annual Capacity: Over 25 Million smart non-spill water caps
| Model Designation | Operating Functions | Production Speed | Label Positioning Accuracy | Sealing Method | Electrical Power | Compressed Air | Action |
|---|---|---|---|---|---|---|---|
| SW-5GL-1500 | Auto Feeding + Sticker Labeling | 1,200 – 1,500 PPH | ± 0.5 mm | Pressure Roller Pressing | 1.8 kW (220V/380V) | 0.4 – 0.6 MPa | |
| SW-5GL-2500 | Feeding + Labeling + Ultrasonic Seal | 2,200 – 2,500 PPH | ± 0.5 mm | 20 kHz Ultrasonic Spot Weld | 3.5 kW (380V 3P) | 0.6 – 0.8 MPa | |
| SW-5GL-3600 | High-Speed Line + Heat-Shrink Sleeve | 3,000 – 3,600 PPH | ± 0.3 mm | Thermal Hot Air Shrink Tunnel | 6.5 kW (380V 3P) | 0.6 – 0.8 MPa | |
| SW-5GL-COMBO | Plug Wadding + Labeling + Ultrasonic | 2,000 – 3,000 PPH | ± 0.5 mm | Inner Plug Insertion + Ultrasonic | 4.2 kW (380V 3P) | 0.6 – 0.8 MPa |
Need 5-Gallon Smart Cap Sealing Trial or Ultrasonic Horn Customization?
Send us your 55mm non-spill caps and sticker roll designs. Our automation engineers calibrate label peeling knives and provide live trial videos within 24 hours.
Engineering Precision: Ultrasonic Sealing & Wadding Stations
Hygienic 5-gallon water delivery demands total protection against airborne bacteria and water leaks. Explore our touchscreen servo labeling heads, 20kHz ultrasonic hermetic spot welders, and heavy-duty wadding units.

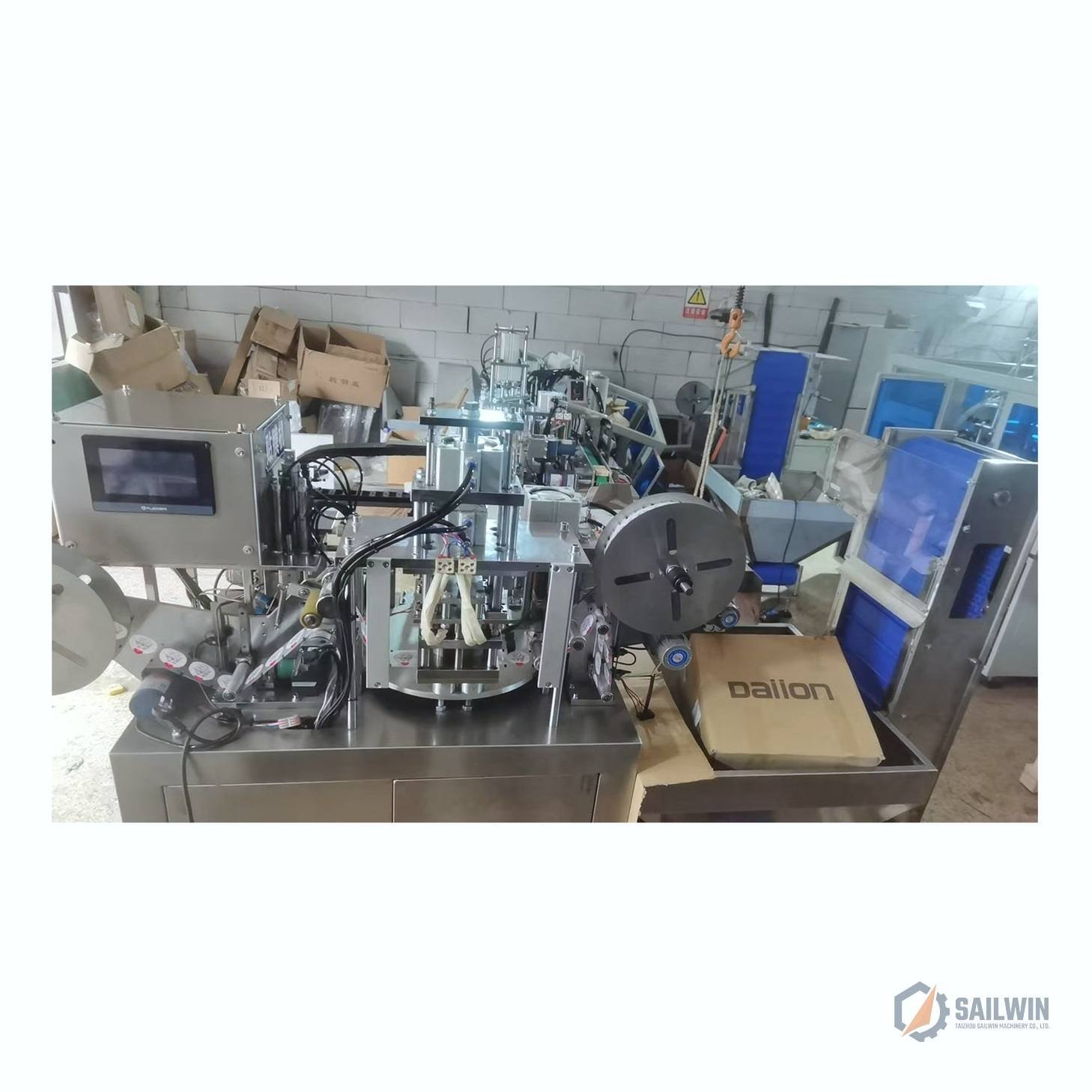

TOUCHSCREEN ULTRASONIC SEALERTouchscreen HMI & Ultrasonic Sealing Unit
Equipped with an advanced Siemens touchscreen interface and a high-frequency 20kHz / 2,000W ultrasonic welding generator. Once the dust-proof label is placed over the 5-gallon cap spout hole, the titanium horn emits instant micro-vibrations, fusing the label perimeter to the cap rim in 0.15 seconds without burning or curling.
- • Hermetic Weld Integrity: 100% moisture-tight seal withstands rain and pressure washing.
- • Servo Label Peeling Knife: Vacuum suction beak peels and applies labels within ±0.5mm accuracy.
- • Real-Time Diagnostic Display: Monitored ultrasonic energy, temperature, and cycle counts on screen.

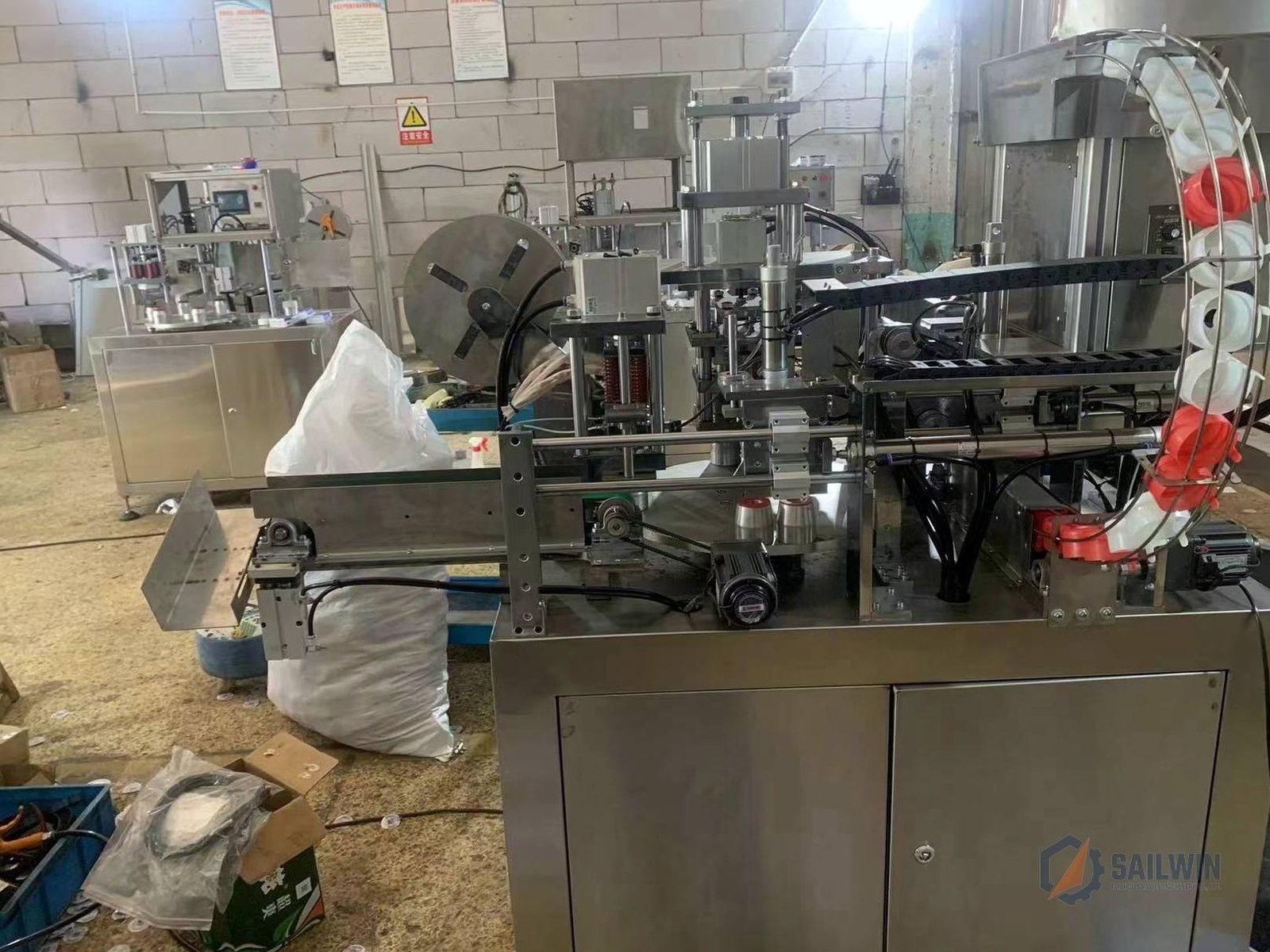

WADDING & LABELING CELLCombined Foam Liner Wadding & Top Labeling
For smart caps requiring internal foam ring liners to seal against dispenser probes, this dual-function machine combines foam gasket insertion and top sticker labeling inside a single compact frame. Powered by a high-capacity bulk cap elevator and soundproof acrylic housing.
- • Dual-Action Capability: Inserts inner foam liner, seals plug, and applies top label in one sequence.
- • Low Noise Operation: Transparent safety enclosure keeps ambient sound levels below 72 dBA.
- • Direct Injection Coupling: Connects directly to Sailwin 8-cavity or 16-cavity 5-gallon cap molds.
Smart Non-Spill Caps & Ultrasonic Metallurgy
Hygienic bottled water security depends on precise peel-tab label placement and acoustic weld horn durability. Explore our titanium ultrasonic horns, sanitary starwheel tracks, and optical fiber label sensors.

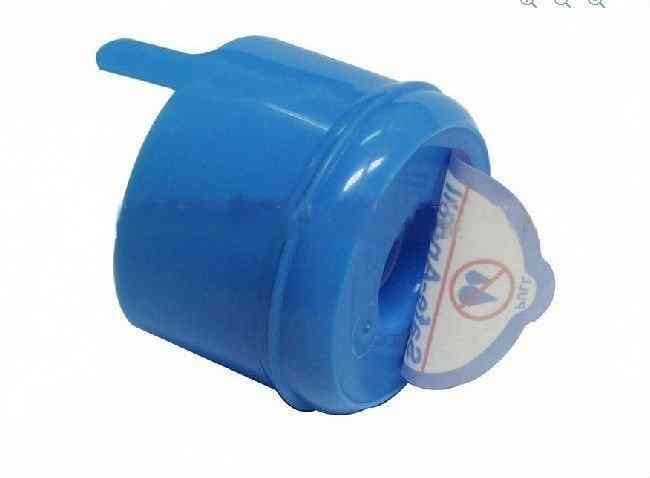

Blue 5-Gallon Smart Cap with Pull-Tab Label
Standard 55mm commercial smart cap with central spout hole covered by an ultrasonic-sealed peelable pull-tab label. Ensures zero airborne dust contamination during warehouse storage and water cooler dispenser mounting.
Aerospace Titanium Horn (Ti-6Al-4V)
High-grade titanium alloy CNC machined and acoustically tuned to 20 kHz resonance. Delivers superior fatigue resistance, uniform vibration distribution, and long service life.
- Operating Frequency: 20 kHz ± 0.2 kHz
- Horn Material: Titanium Alloy Ti-6Al-4V
- Weld Cycle Duration: 0.15 – 0.25 Seconds
- Continuous Life: > 10,000,000 Welds
Cleanroom Stainless Starwheels
All cap chutes, elevator flights, and indexing dial starwheels are fabricated from mirror-polished AISI 304/316 stainless steel, fully compliant with FDA bottled water hygiene codes.
- Material Standard: AISI 304 / 316 Stainless
- Surface Roughness: Electropolished Ra 0.2μm
- Washdown Rating: IP65 Water Jet Proof
- Cap Contact Area: Zero Plastic Abrasion
Servo Label Feeder & Optical Sensors
Micro-gap optical fiber sensors detect transparent or metallic label edges with sub-millisecond response. Panasonic servo drive controls label strip advance with zero pitch drift.
- Labeling Accuracy: ± 0.5 mm Concentric
- Optical Sensor Brand: Keyence / Panasonic
- Label Roll Core: 76mm Standard Core
- Missing Label Check: 100% In-Line Photoelectric
5-Gallon Machinery Campus & Live FAT Machine Trials
Take a virtual tour of our 15,000m² packaging automation plant in Taizhou, China. Over 30 CNC machining bays, cleanroom assembly zones, and turnkey 5-gallon water bottling automation lines.
Ultrasonic Horn Tuning
In-house acoustic impedance analyzers tune titanium ultrasonic horns, ensuring stable 20kHz resonance without power fluctuation or thermal drift.
Plant Floor Plan CAD
Our automation engineers provide 2D AutoCAD and 3D line layout integration connecting your 5-gallon cap injection molds to labeling lines.
Vacuum Leak Detection Lab
In-house vacuum decay test chambers verify cap spout label seals under negative pressures up to -0.06 MPa, ensuring zero water cooler leakage.
Global Field Commissioning
Multilingual field service technicians provide on-site overseas installation, electrical integration, and operator training worldwide.
Industrial Applications & Machinery Navigation Hub
Hygienic non-spill cap labeling and sealing solutions across commercial 5-gallon water delivery plants, natural spring bottling stations, and institutional drinking water supplies.

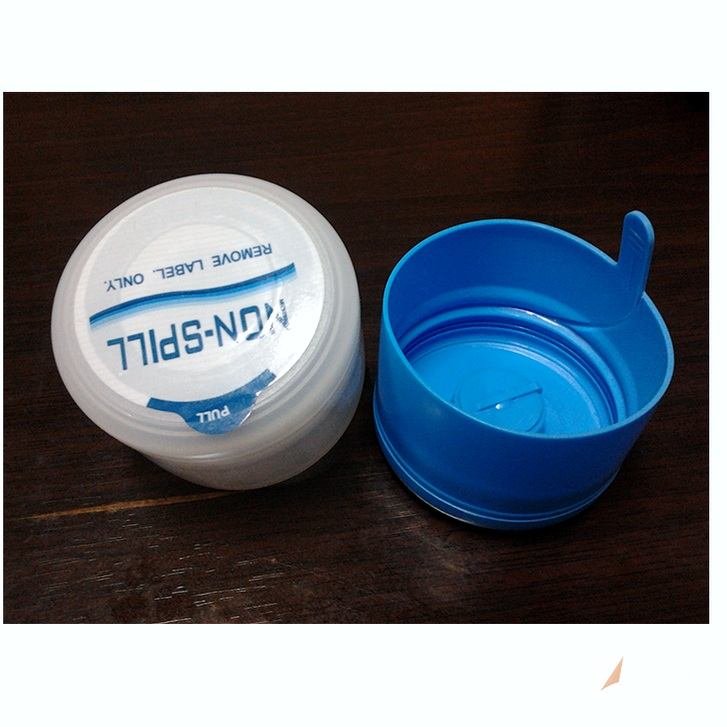

Smart Non-Spill Caps with Dust-Proof Labels
Batch of finished 5-gallon non-spill water caps with peelable hygienic sticker labels and ultrasonic welded perimeter rings. Engineered to slide effortlessly into automated bottle washing, filling, and capping lines without label jamming or premature detachment.
Target Packaging Sectors
Commercial 18.9L drums, residential water dispensers, and office coolers.
18.9L Bottled Water Refilling
High-speed top-sticker labeling for 55mm smart caps, protecting the dispenser probe puncture hole against dirt and airborne bacteria during transport.
Smart Non-Spill Probe Caps
Inserts the inner plastic probe plug, applies the sealing foam ring, and bonds the peel-tab top label with zero glue contamination of drinking water.
Full Heat-Shrink Neck Sleeves
Pairs top-sticker labeling with full-body heat-shrink PVC/PET neck sleeves, providing secondary tamper evidence for premium spring water brands.
Sanitary Recycling Water Caps
Continuous automated wadding and labeling for returnable drum caps, ensuring food-grade hermetic seal integrity on every refilled bottle.
Continuous 3,000 PPH Non-Spill Cap Labeling
A regional commercial bottled water refilling group replaced manual label application with 2 Sailwin SW-5GL-3600 smart cap labeling lines. Running at 3,000 caps/hour stable output, the machines eliminated manual sticker peeling, reduced label misalignment defects from 2.4% to 0.05%, and achieved full capital payback in under 4.2 months.
Downstream Cap Machinery & 5-Gallon Blow Molds
Explore 5-gallon bottle blow molds, lining machines, assembling lines, and master hubs.
5-Gallon Bottle Blow Molds
Heavy-duty forged 7075-T6 aluminum molds for 18.9L / 5-gallon PC & PET water drums with bottom drop cores.
Rotary Cap Lining Machine
Automatic wadding machine for inserting EPE foam, aluminum induction foil, and silicone seals (3,000–15,000 PPH).
Cap Slitting & Folding Machine
Rotary slitting of micro-bridges on tamper-evident drop bands and inward folding (6,000–25,000 PPH).
Plastic Injection Molds Hub
Explore all 9 closure categories, preform tooling systems, and custom precision plastic injection tooling.
Frequently Asked Questions on 5-Gallon Cap Labeling
Explore engineering insights regarding vacuum label peeling accuracy, ultrasonic spot welding vs hot-melt adhesives, 55mm smart cap compatibility, and automated bottling monoblock coupling.
Misaligned labels can snag on water dispenser probes during bottle inversion:
- Starwheel Mechanical Nesting: Dial starwheel pockets hold the 55mm cap with zero lateral play (±0.05mm).
- Vacuum Peeling Beak: Panasonic servo motor feeds the label backing tape over a sharp peeling knife, where a vacuum suction pad holds the label securely.
- Press Plunger Alignment: A descending pneumatic plunger presses the label concentric with the central spout within ±0.5mm accuracy.
Drinking water packaging imposes strict food-contact safety standards:
- Zero Chemical Migration: Ultrasonic welding uses high-frequency friction to fuse polymer molecules directly, eliminating glues that could leach into purified water.
- Hermetic Moisture Seal: Pressure-sensitive stickers can peel under outdoor humidity or bottle washing; ultrasonic spot welds create a permanent hermetic bond.
- Instant Cycle Time: Spot welding completes in 0.15 to 0.25 seconds with no cooling or drying delay.
Yes. The machine features modular starwheel nests designed for standard 5-gallon bottled water closure variants:
- 55mm Smart Non-Spill Caps: Standard one-piece or two-piece smart caps with center plug.
- Tear-Off Strip Caps: Snap-on tamper-evident closures with side pull tabs.
- Reusable Screw-On Caps: Wide-mouth threaded 5-gallon drum caps.
- Fast Changeover: Swapping the starwheel dial and adjusting feeding tracks takes under 20 minutes with no special tools.
The SW-5GL-2500 is sized for mid-to-large commercial water bottling operations:
- Rated Throughput: 2,200 to 2,500 caps/hour continuous operation (up to 3,600 PPH on SW-5GL-3600).
- Connected Power: 3.5 kW total rating (including 2.0 kW ultrasonic generator and servo feeder).
- Compressed Air: 0.6 to 0.8 MPa operating pressure, consumption approx. 0.3 m³/min.
Yes. Sailwin systems integrate seamlessly with commercial bottled water packaging lines:
- Monoblock Interlock: Labeled caps discharge onto an enclosed air track or sanitary conveyor leading directly into the capping chute of your 5-gallon washer-filler-capper monoblock.
- Sensor Buffer Control: Photoelectric sensors in the capping chute signal the labeling machine to pause automatically when the chute is full and restart on demand.
- Unattended Operation: Ground-level elevator hopper holds 5,000 caps, requiring hopper reloading only once every 2 hours.
