Precision Motor Oil & Detergent Bottle Extrusion Blow Mold
Specialized hdpe bottle mold engineering for engine oil bottles with view-stripe liquid indicator lines, laundry detergent jugs with ergonomic hollow handles, and angled-neck toilet cleaner containers. Engineered with Japanese C17200 beryllium copper pinch-offs and pre-hardened P20/718H steel to ensure clean in-mold deflashing shears, leakproof spout threads, and 5,000,000+ shots lifespan.
Motor Oil & Detergent Bottle Mold Engineering Parameters
Precision-milled for HDPE, PP, and co-extruded multi-layer chemical bottles. Engineered with transparent view-stripe alignment, hollow handle sliders, and in-mold deflashing shears.
| Technical Specification | Standard Parameter Range | Engineering Benefit for Chemical Packagers |
|---|---|---|
| Bottle Volume Capacity | 250ml, 500ml, 1L, 2L, 4L, 5L Packs | Covers single-dose engine oil bottles, trigger sprayers, and large 5L laundry detergent jugs |
| Available Cavity Layout | 2, 4, 6, 8 Cavities Multi-Parison | Scalable from double-station shuttle blow molders to high-output 8-cavity continuous lines |
| View-Stripe Line Feature | Precision Parison Slit Channel Alignment | Enables crystal-clear liquid level graduation stripe without thinning container side wall |
| Handle Core Mechanism | Hydraulic / Pneumatic Core-Pulling Slider | Creates strong hollow ergonomic handles with zero hand-pinch flash along the seam |
| Angled Neck Technology | Chamfered Neck Split Blocks (<45° Angle) | Specialized for duckbill toilet cleaner bottles and directional chemical pouring spouts |
| Pinch-Off Metallurgy | Japanese C17200 Beryllium Copper Inserts | 350% faster heat extraction along thick handle and tail seams, preventing cycle bottlenecks |
| In-Mold Auto Deflashing | Integrated Neck, Handle & Tail Trim Shears | 100% automated flash trimming inside the mold; bottles drop out finished and clean |
| Mold Steel Grades | Pre-Hardened P20 / 718H / S136 (HRC 32–36) | Vacuum-treated forged billets eliminate cavity breathing and parting line mismatch |
| Cycle Time Efficiency | 12s – 18s (Depending on Volume & Wall) | Deep gun-drilled high-turbulent conformal water cooling circuits maximize line output |
| Guaranteed Mold Life | 5,000,000+ Continuous Cycles | Hardened wear strips and bronze self-lubricating slide gibs for 24/7 industrial production |

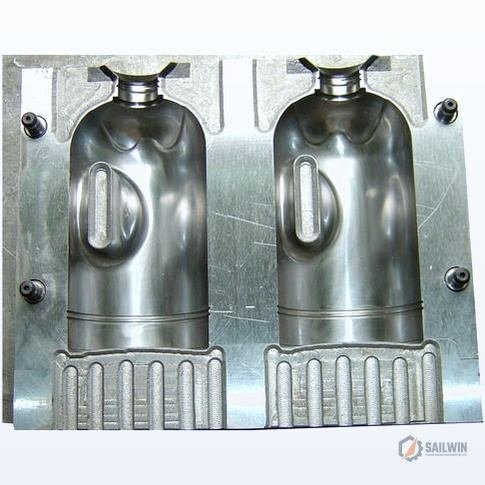

2 CAVITY · HOLLOW HANDLE2-Cavity Laundry Detergent Bottle Mold
Equipped with integrated handle pinch-off blade inserts and bottom deflashing shears. Engineered for 2L–4L liquid detergent and fabric softener jugs.
- Volume: 2,000ml – 4,000ml Jugs
- Handle: Ergonomic hollow carry grip
- Pinch-Off: Japanese C17200 Be-Cu insert
- Spout: Sloped pouring spout with drain back

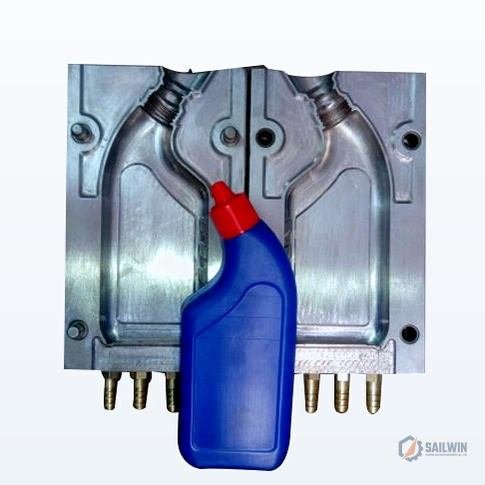

ANGLED NECK · CORROSIVE RESIN2-Cavity Angled-Neck Cleaner Bottle Mold
Specialized angled neck split blocks allowing directional duckbill spout blowing. Cavity treated with corrosion-resistant nickel coating for acidic toilet cleaning chemicals.
- Volume: 500ml – 1,000ml Angled Bottles
- Neck Angle: 30° / 45° Directional Spout
- Anti-Corrosion: S136 stainless steel inserts
- Demolding: Synchronized angled cam slide action

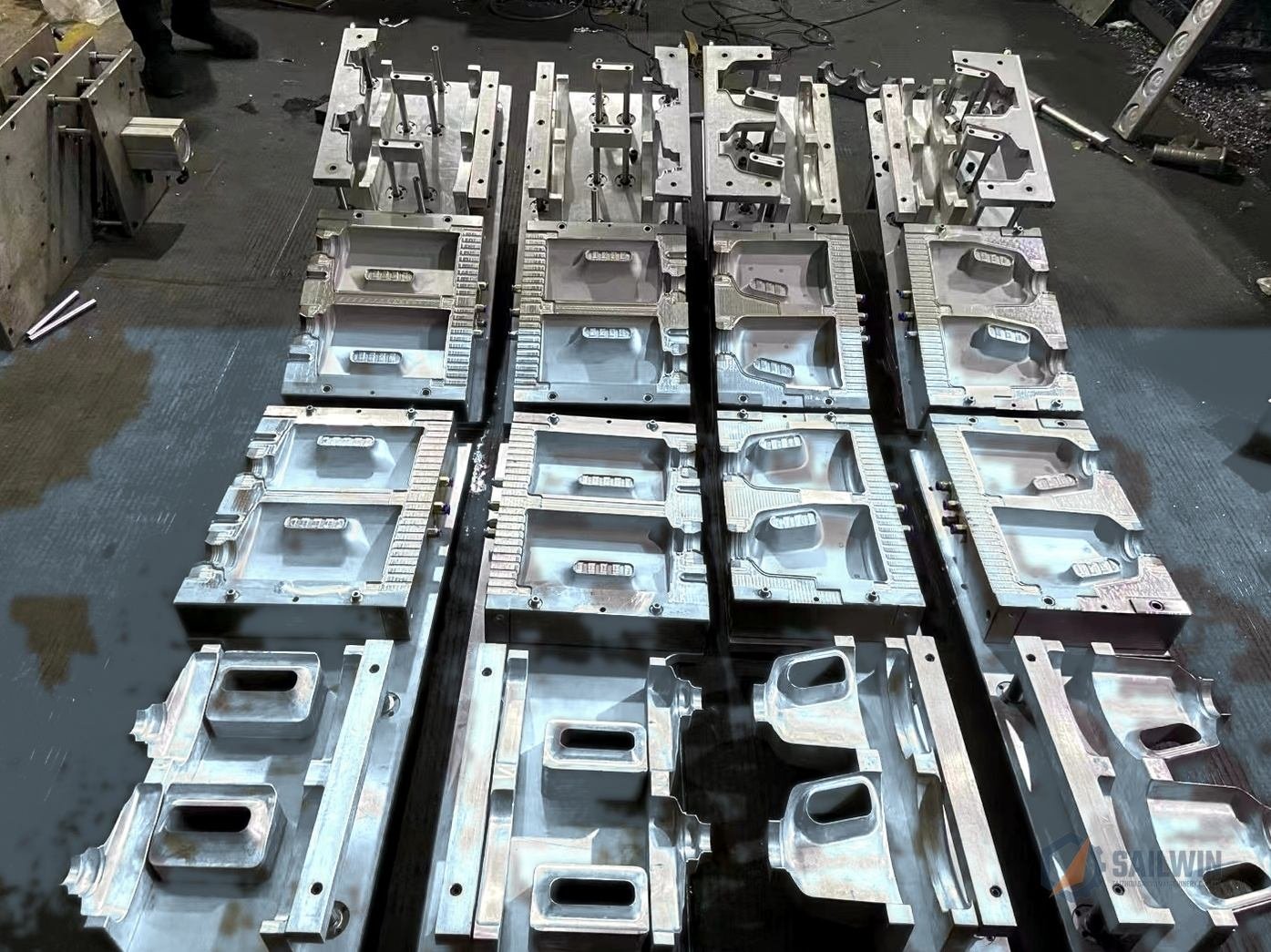

MULTI-CAVITY LINEUPMulti-Cavity Motor Oil & Detergent Lineup
High-density 4-cavity and 6-cavity continuous shuttle mold assemblies with calibrated view-stripe parison slits for 1L and 4L engine oil bottle packaging.
- Volume: 1L / 4L / 5L Engine Oil Packs
- Feature: View-stripe level graduation channel
- Deflashing: Automated handle slug and tail punching
- Output: Up to 1,800 Bottles/Hour on shuttle lines
Specialized Bottle Engineering: View-Stripe & Multi-Cavity Flow
Precision calibration for transparent oil level lines, hollow handle deflashing, and heavy structural backplates. Engineered for continuous industrial blow molding lines.

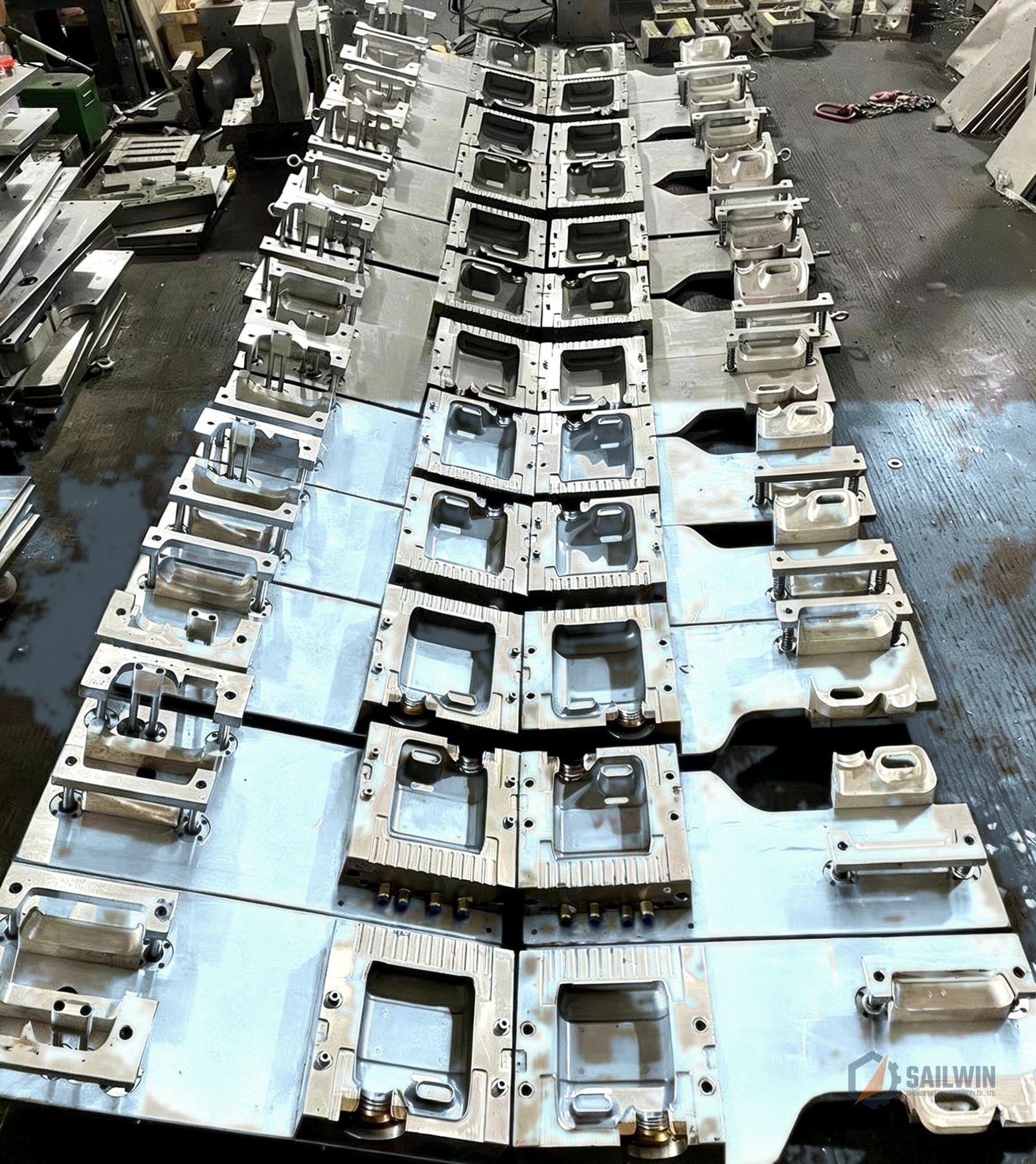

CONTINUOUS SHUTTLE TOOLINGContinuous Extrusion Multi-Cavity Lineup
Engineered for high-volume motor oil packaging plants running continuous parison shuttle machinery. Standardized center-to-center cavity distances match multi-die extrusion heads with zero parison swing.
- Die Matching: Precise center pitch alignment for 2-die, 3-die, and 4-die extrusion heads
- Synchronized Deflash: Dual-action pneumatic punch bars shear handle and tail flash simultaneously
- Thermal Uniformity: Balanced multi-channel cooling manifold guarantees identical cycle times across all cavities

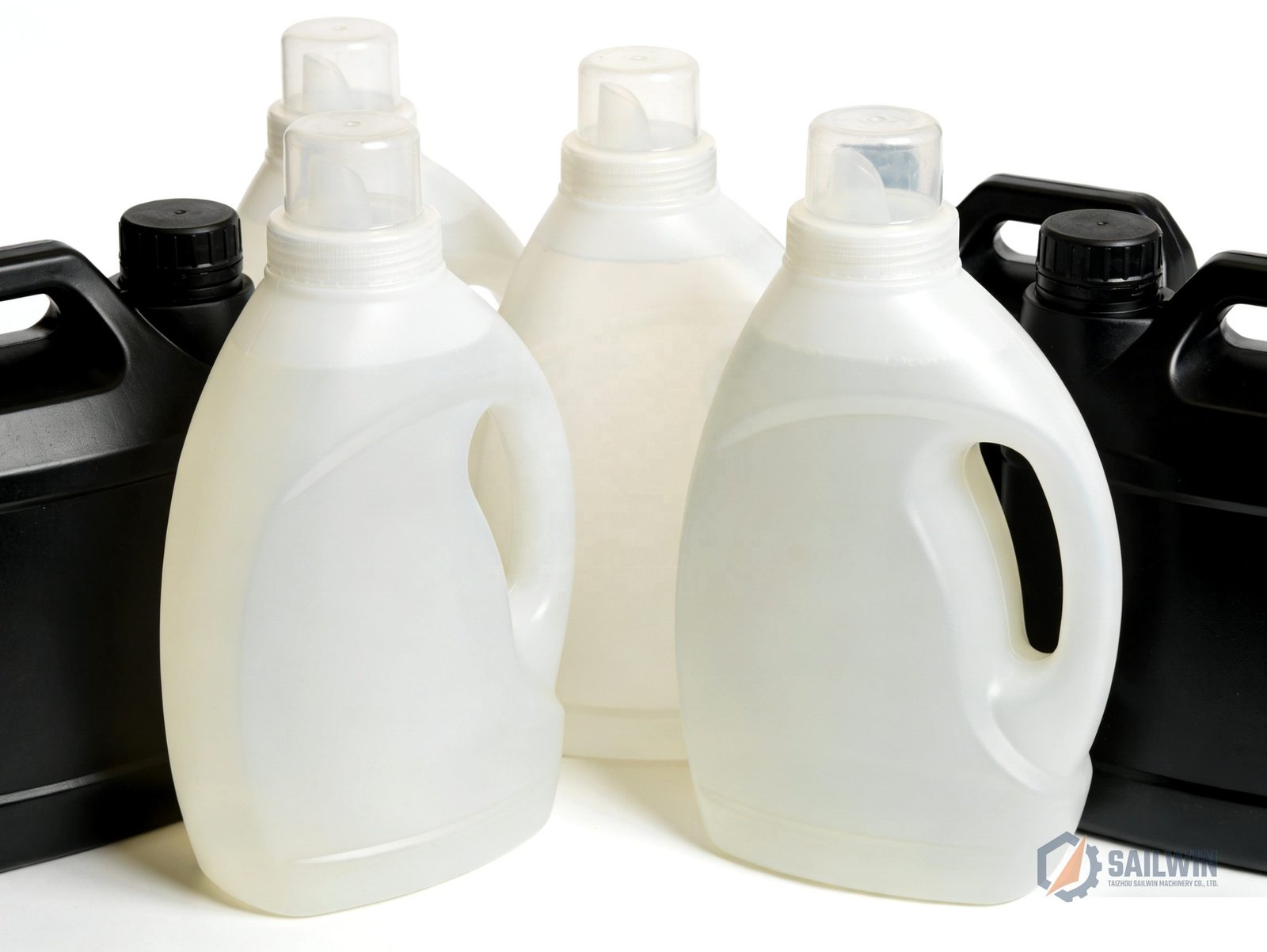

VIEW-STRIPE TECHNOLOGYTransparent View-Stripe Parison Calibration
Engine oil and chemical jugs require a transparent vertical level stripe with embossed volume graduations (1L, 2L, 4L, 5L). Our cavity parting lines are microscopically adjusted to prevent stripe distortion.
- Parison Slit Matching: Co-extrusion die stripe channel perfectly aligns with mold cavity graduation ribs
- Wall Consistency: Balanced blow air dynamics prevent the translucent stripe from thinning or bowing
- Clean Embossing: Razor-sharp volume scale numbering (ml/Quart/Liters) molded directly into the bottle wall
PRE-HARDENED ALLOY BLOCKSHeavy-Duty Tooling Blocks & Gun-Drilled Circuits
Forged tool steel blocks are deep gun-drilled with high-turbulent spiral cooling channels. Beryllium copper inserts are positioned directly adjacent to handle seams where heat concentration is highest.
- Steel Hardness: Vacuum-treated P20 / 718H blocks (HRC 32–36) prevent parting line depression
- Pinch-Off Thermal Rate: C17200 Be-Cu cools parison flash 350% faster, eliminating seam drag marks
- High-Flow Manifold: Uniform water distribution maintains ±1.5°C cavity temperature across multi-parison sets
Pre-Hardened Tool Steels & Boring Center Accuracy
Precision multi-cavity EBM molds require deep gun-drilled cooling channels and rigid platen parallelism. We machine monolithic tool blocks using high-precision CNC horizontal boring centers.

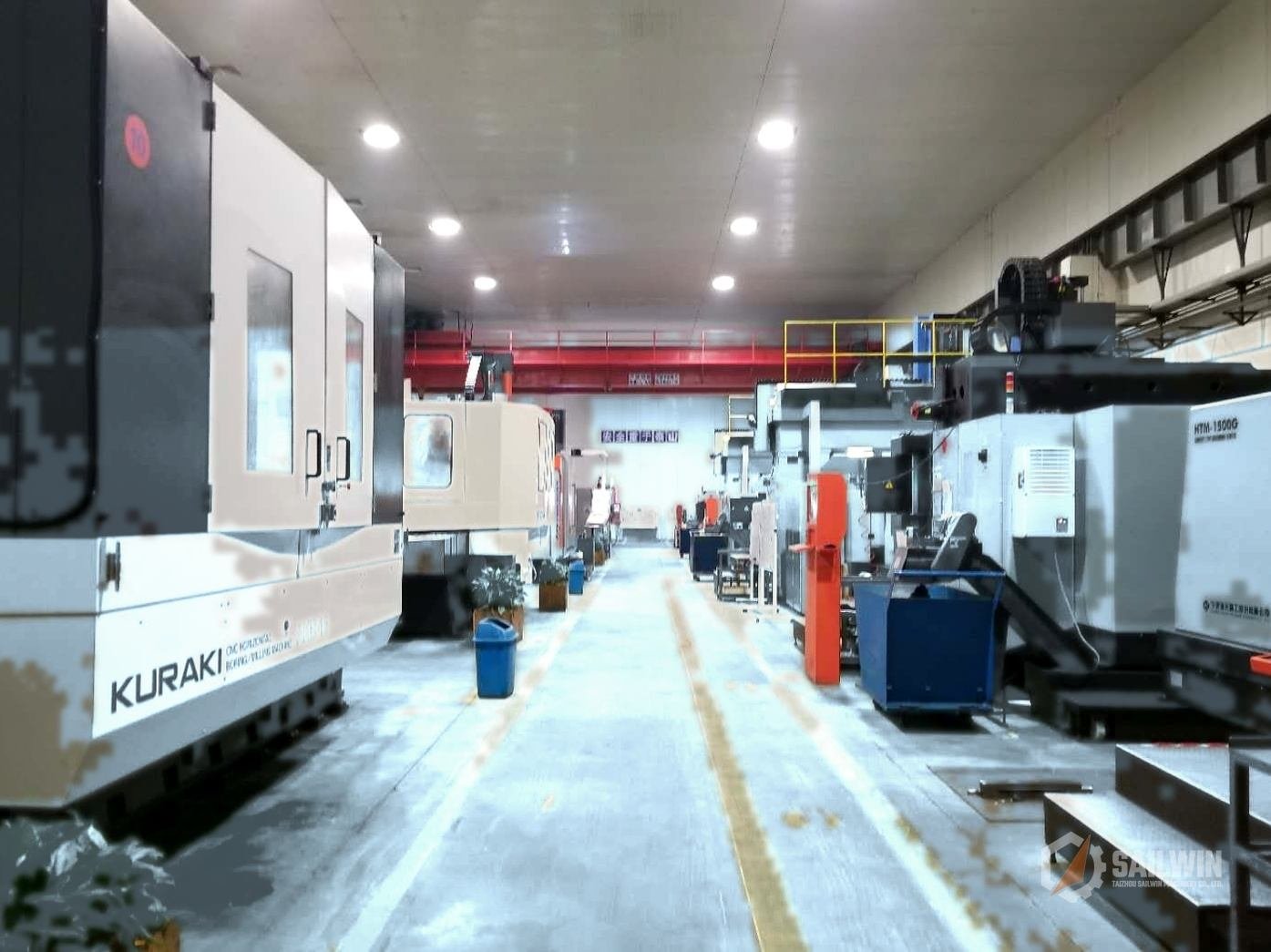

HORIZONTAL BORING FACILITYCNC Horizontal Boring & Deep-Hole Drilling
Our heavy-duty horizontal boring centers drill continuous cross-circuit water channels through multi-cavity mold blocks, ensuring high-velocity water flow directly behind critical pinch-off zones.
- Boring Precision: Axis positional repeatability held within ±0.008mm
- Cooling Uniformity: Balanced deep-hole water galleries prevent hot-spot warpage
- Heavy Bed: Monolithic casting bed eliminates vibration during heavy face milling
- Tooling Lifespan: 5,000,000+ continuous cycles guaranteed
VACUUM-HARDENED STEELPre-Hardened P20 / 718H / S136 Metallurgy
We source vacuum-degassed forged mold steels with mill test certs. Molds running aggressive detergent surfactants or acidic toilet cleaners receive S136 stainless steel cavity inserts for corrosion immunity.
- Core Hardness: HRC 32–36 uniform hardness throughout the block thickness
- Corrosion Immunity: Optional S136 inserts (HRC 48–52) for bleach and acidic chemicals
- Wear Plates: Self-lubricating aluminum-bronze wear strips along sliding guide gibs
- Parting Line Match: Precision-fitted blade shutoffs eliminate seam flash
Heavy Machining Plant & Mold Assembly Hall

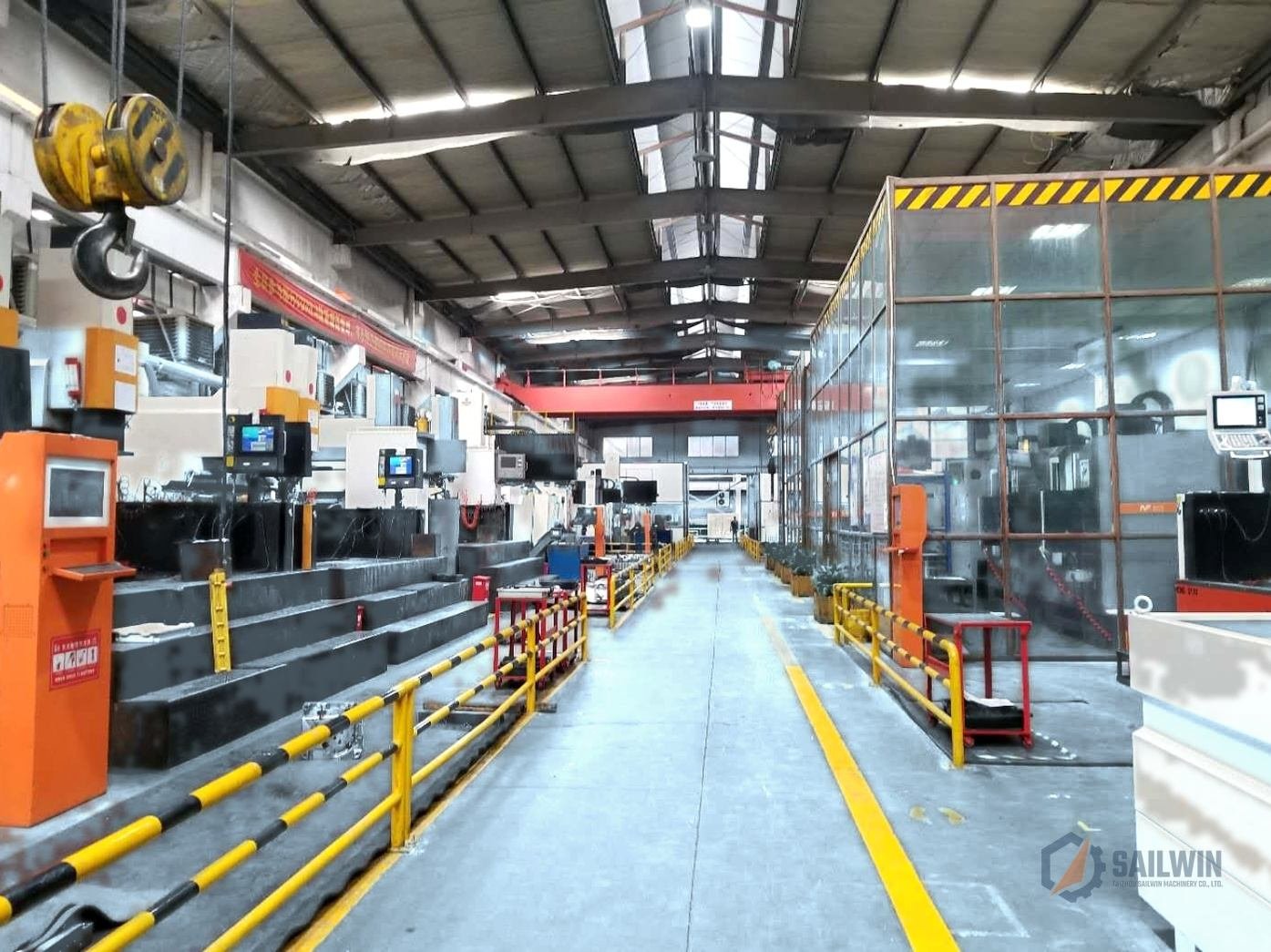

Equipped with overhead cranes, precision dye-spotting hydraulic presses, and dedicated clean assembly bays for continuous shuttle extrusion blow molds.

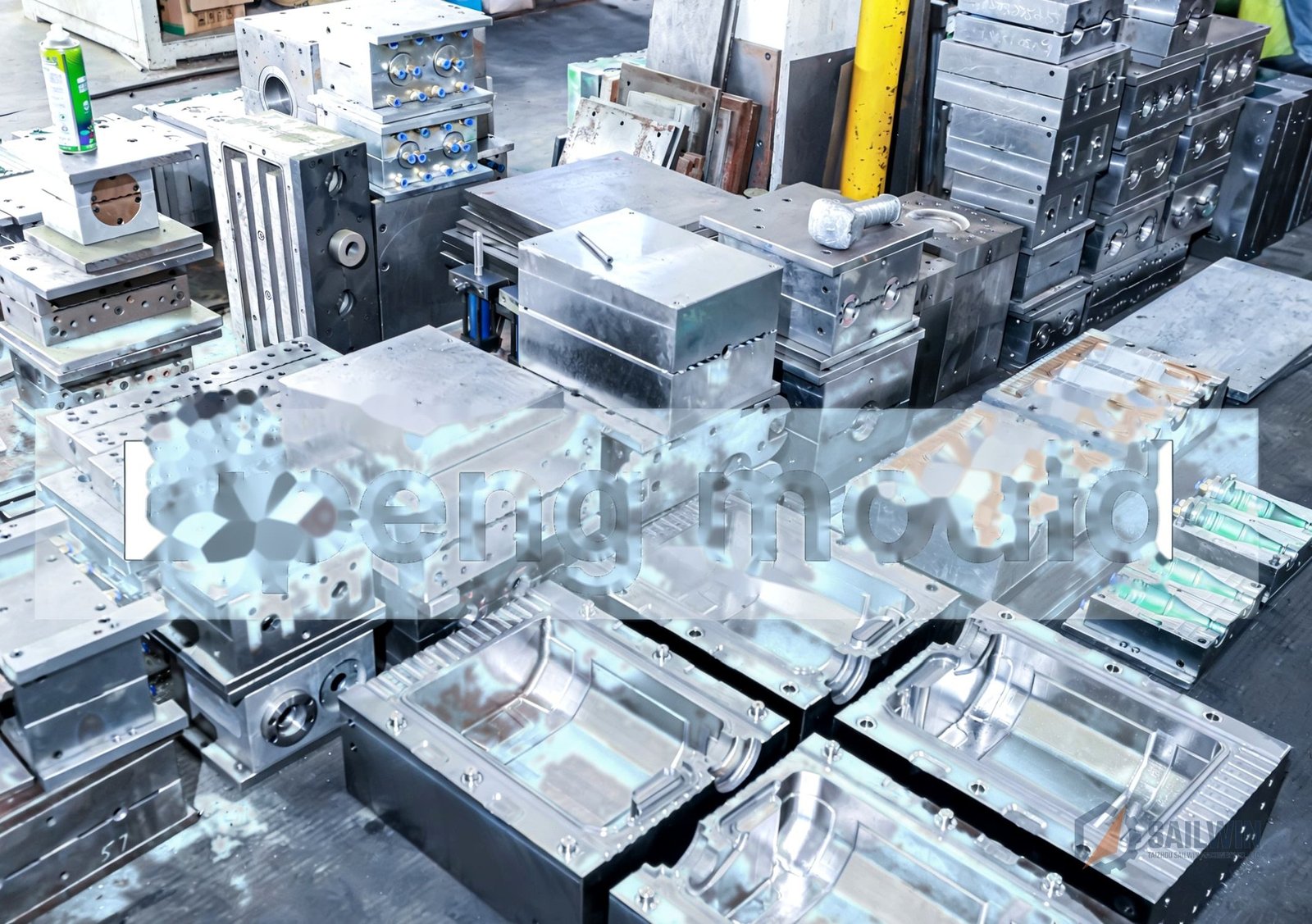

Heavy-Duty Machining & Assembly Bays
Overhead traveling cranes and high-rigidity assembly platens allow precision fitting of multi-cavity engine oil bottle mold sets up to 6 cavities simultaneously.

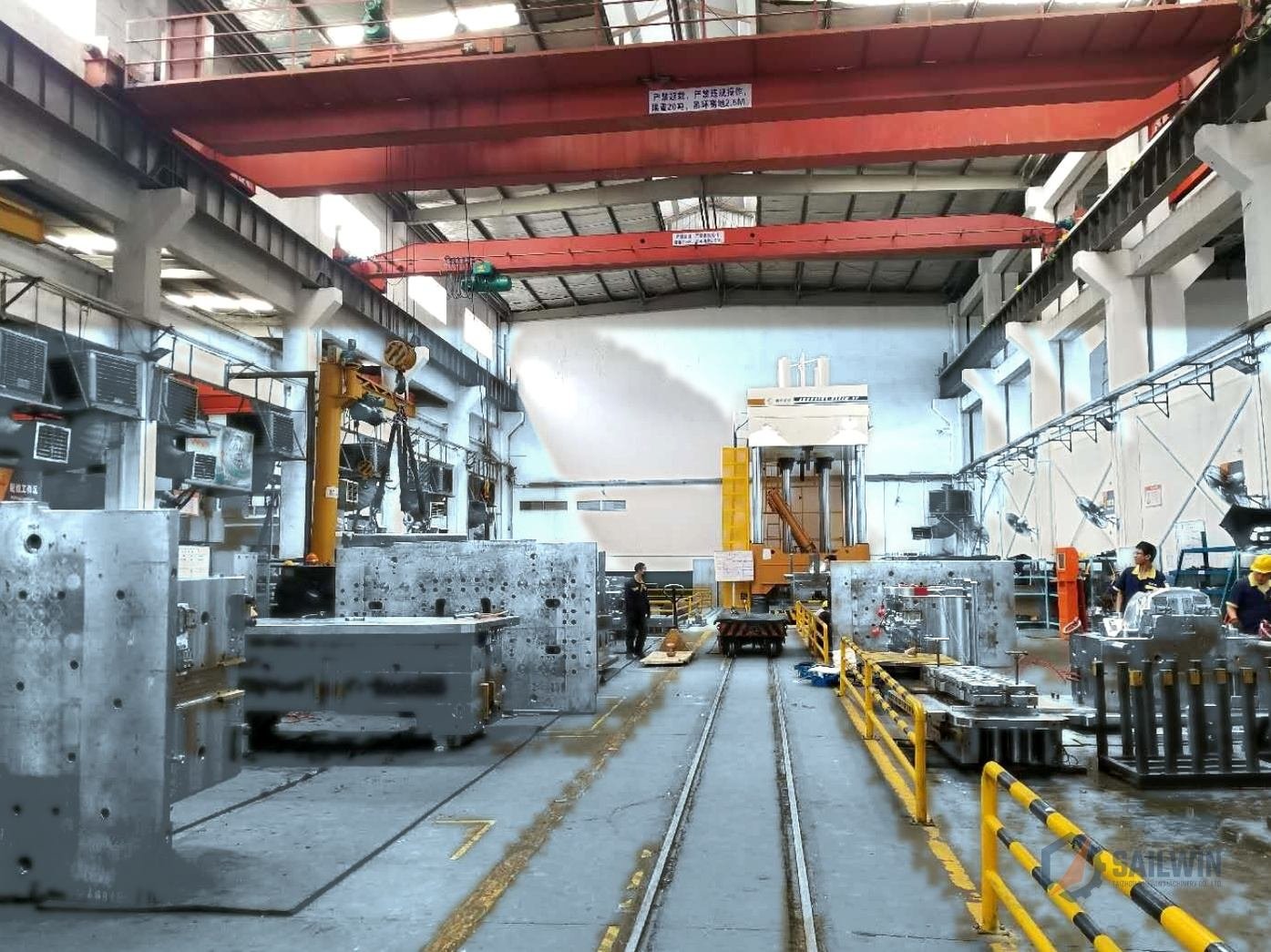

Hydraulic Die-Spotting & Fitment Hall
Dedicated high-tonnage mold spotting presses apply calibrated clamping pressure to verify >90% Prussian-blue contact on all pinch-off blades and deflashing shears.

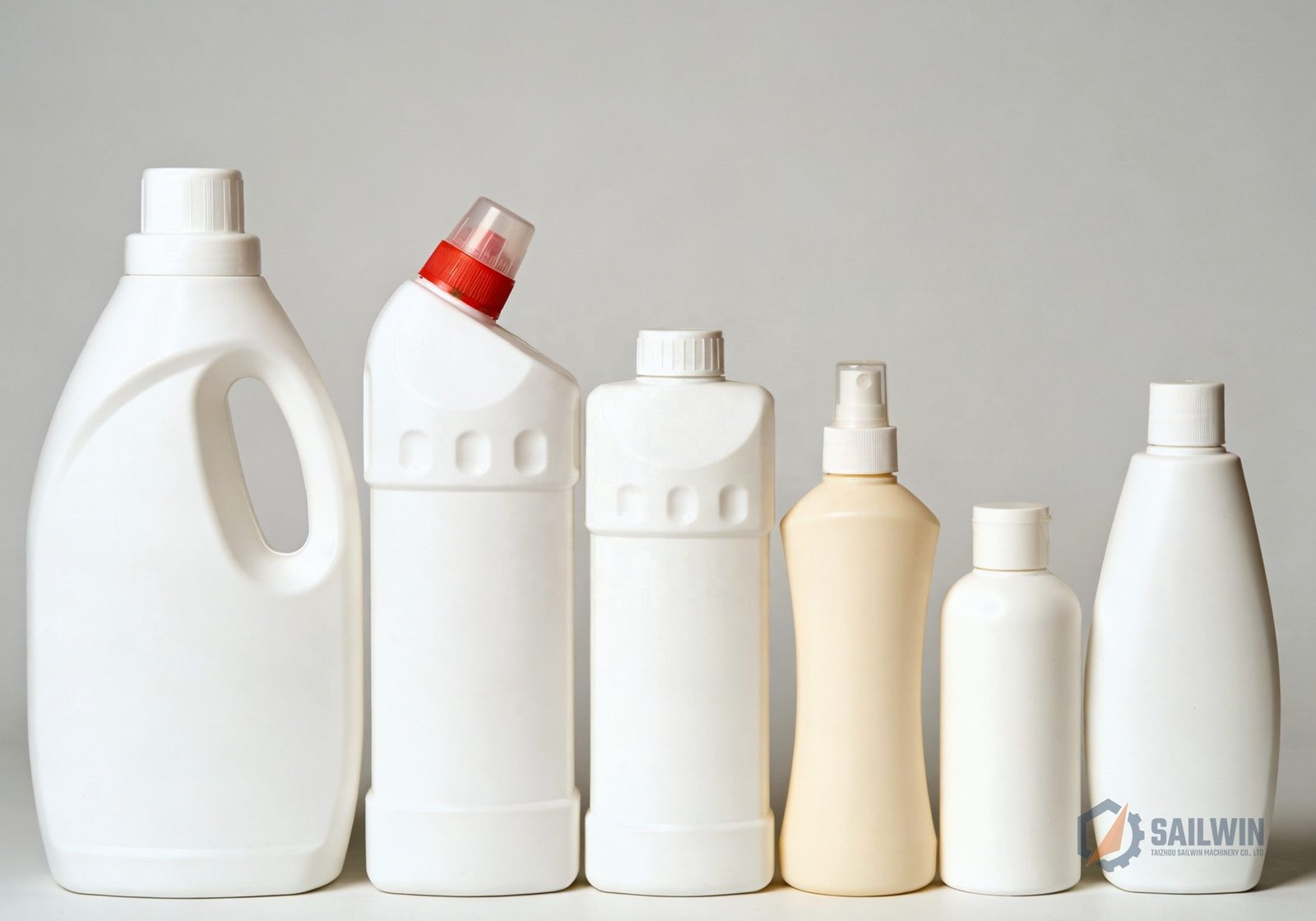

HDPE Chemical Bottle Gallery & Cross-Tooling Navigation
From single-dose motor oil bottles to angled toilet cleaners and 5L detergent jugs. Explore our production container portfolio and related tooling sub-pages.
Zero-Leak Spouts & Comfortable Handle Ergonomics
Automotive lubricants and cleaning chemicals require 100% thread seal integrity and robust hollow handles that withstand 1.5-meter liquid drop testing. Our molds deliver precise neck calibrations and smooth parting lines that never pinch the consumer's hand.
