High-Hygiene Food Packaging Cap Mold & Sauce Dispensing Tooling
Engineered for tomato ketchup, mayonnaise, mustard, salad dressing, soy sauce, and honey squeeze bottles. Sailwin multi-cavity food packaging cap molds combine precision silicone cross-valve retaining pockets, sharp anti-drip cut-off orifices, and food-grade Swedish ASSAB S136 stainless steel, guaranteeing clean squeeze dispensing with zero tail stringing, 100% anti-suck-back hygiene, and an ultra-fast 8.2s molding cycle.
Precision Sauce Cap Mold & Squeeze Closure Series
Explore our field-proven tooling platforms for tomato ketchup, mayonnaise, honey, salad dressing, and soy sauce squeeze bottles featuring silicone cross-valves and anti-drip orifices.

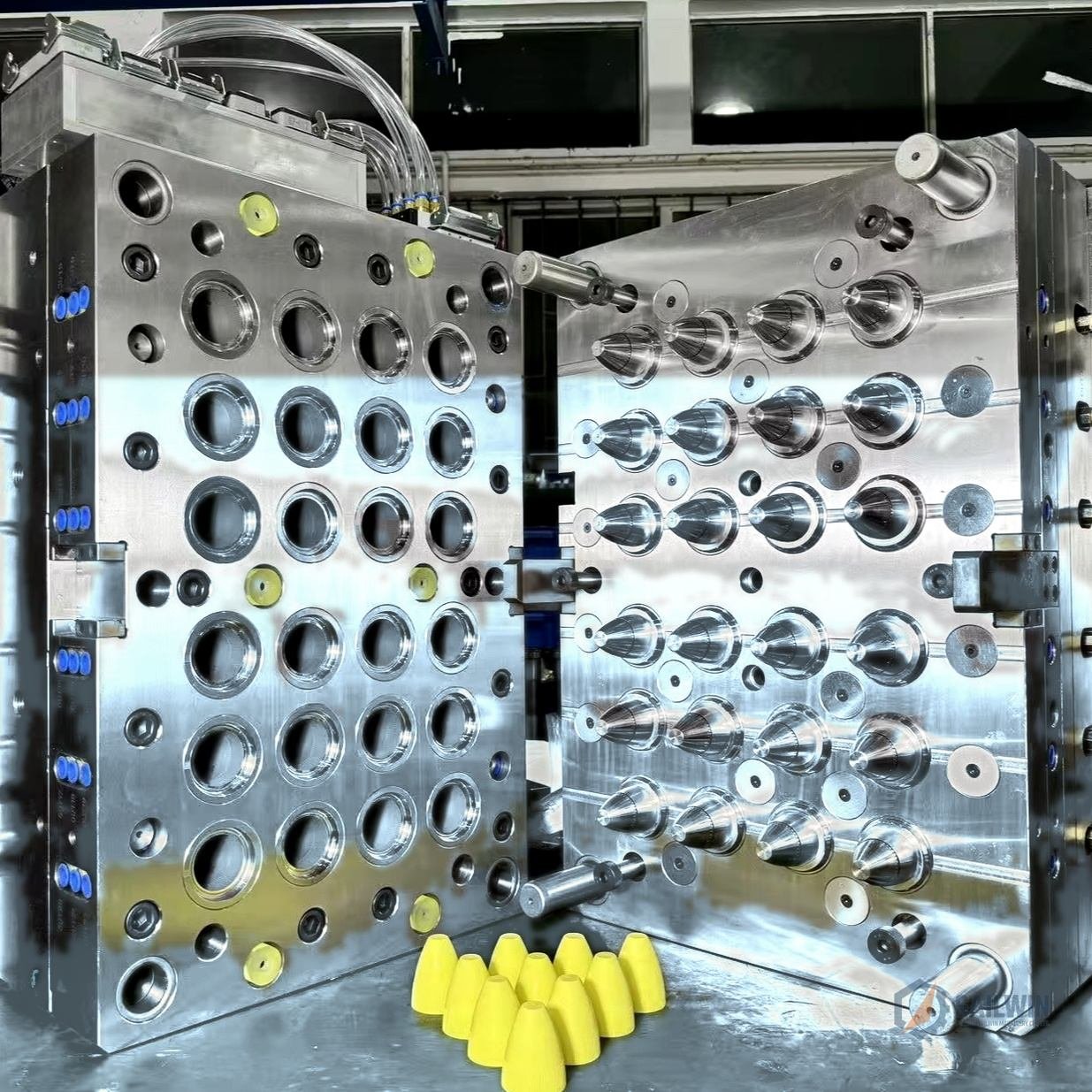

24-CAVITY · CONE SPOUT24-Cavity Squeeze Cap Tooling
Engineered for yellow mustard and tomato ketchup squeeze bottles. Features precision cone dispensing spouts with interference-fit sealing pins to eliminate crusting.
- Neck Finish: 28/400 / 33/400 Squeeze Bottle Standard
- Dispensing Orifice: 3.0mm, 4.5mm, 6.0mm flow diameters
- Cycle Time: 8.2s – 9.5s with automated stripper ejection
- Tool Steel: ASSAB S136 stainless steel cores & cavities

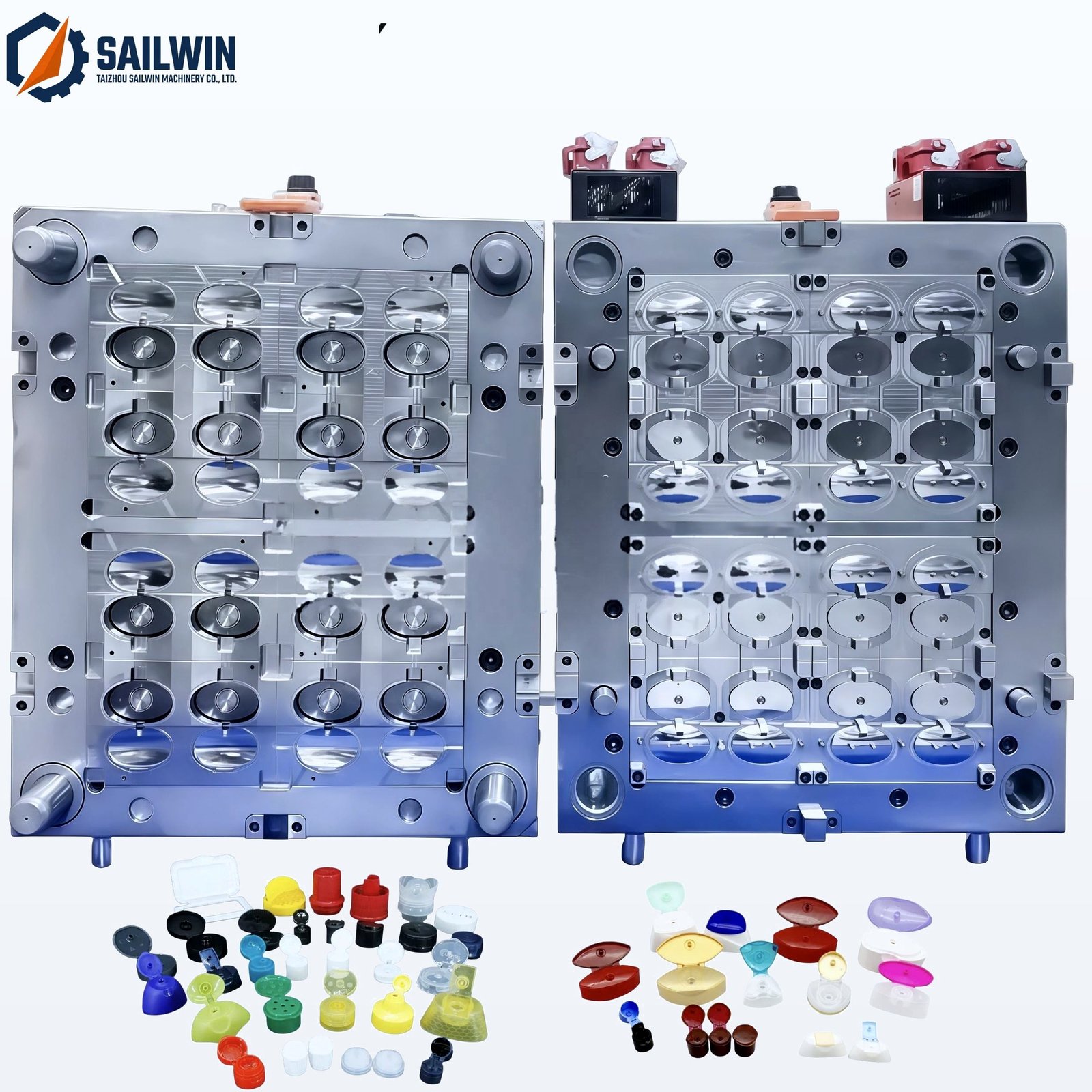

24-CAVITY · OVAL FLIP-TOPOval Condiment Squeeze Flip Molds
Specialized tooling for upside-down standing squeeze bottles (ketchup, BBQ sauce, and honey). Wide flat lid profile allows stable inverted retail shelf display.
- Inverted Standing: 45mm broad base prevents bottle tipping
- Valve Pocket: Molded retaining shelf for silicone cross-slit valve
- Hinge Durability: Butterfly living hinge tested > 10,000 flexes
- Hot Runner: Balanced needle valve-gate with PID control

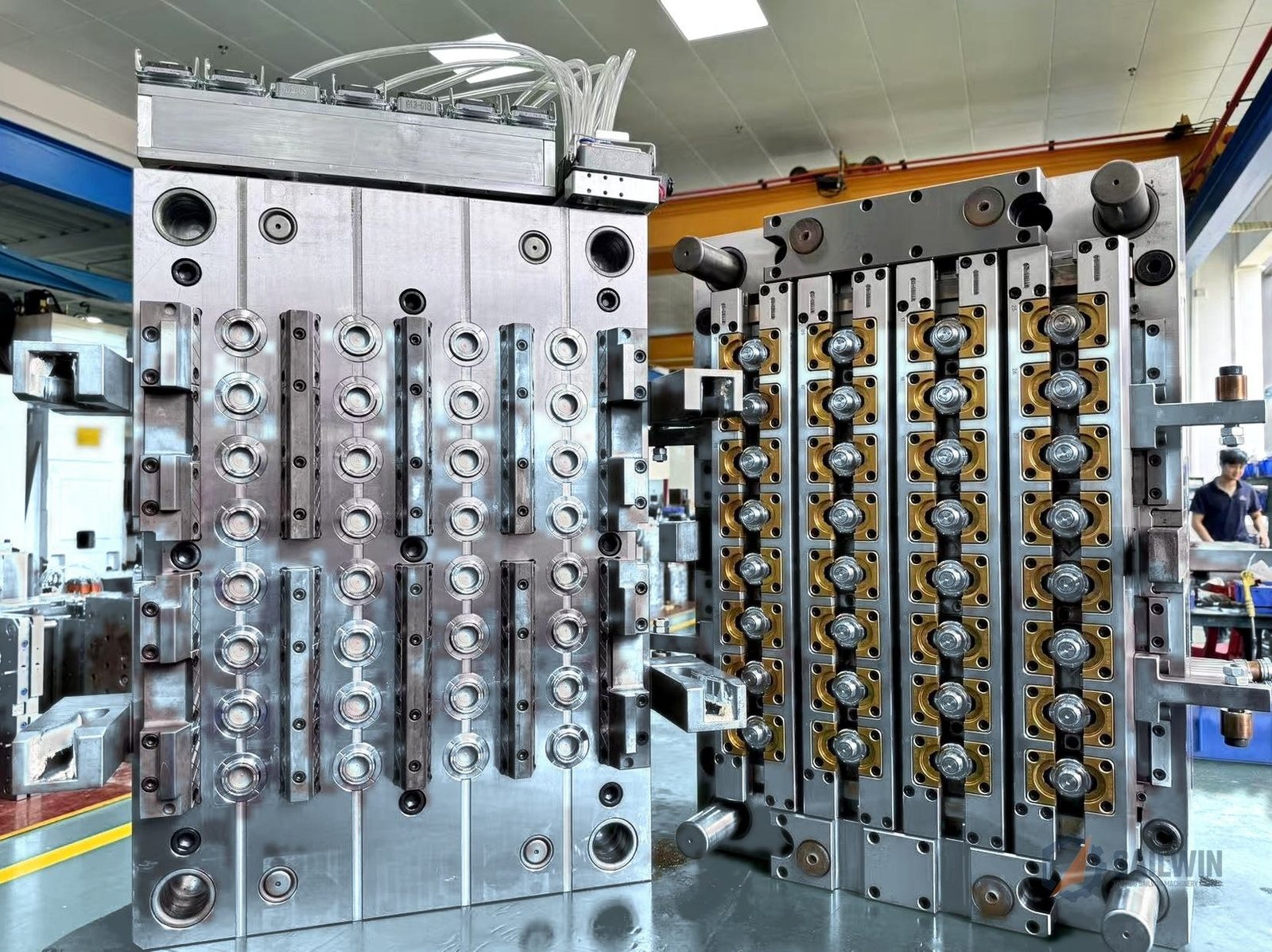

32-CAVITY · HIGH-OUTPUT32-Cavity High-Speed Sauce Tooling
The flagship tooling series for international food sauce bottlers running 100M+ caps annually. Incorporates high-conductivity beryllium brass nozzle inserts for accelerated chilling.
- Thermal Conductivity: Rapid heat dissipation cuts cycle to 8.2s
- Sub-Micron Interchangeability: Individual cavity swap ±0.003mm
- Anti-Suck Back: Controlled air venting prevents sauce contamination
- Output: Over 118 million caps annually per mold set

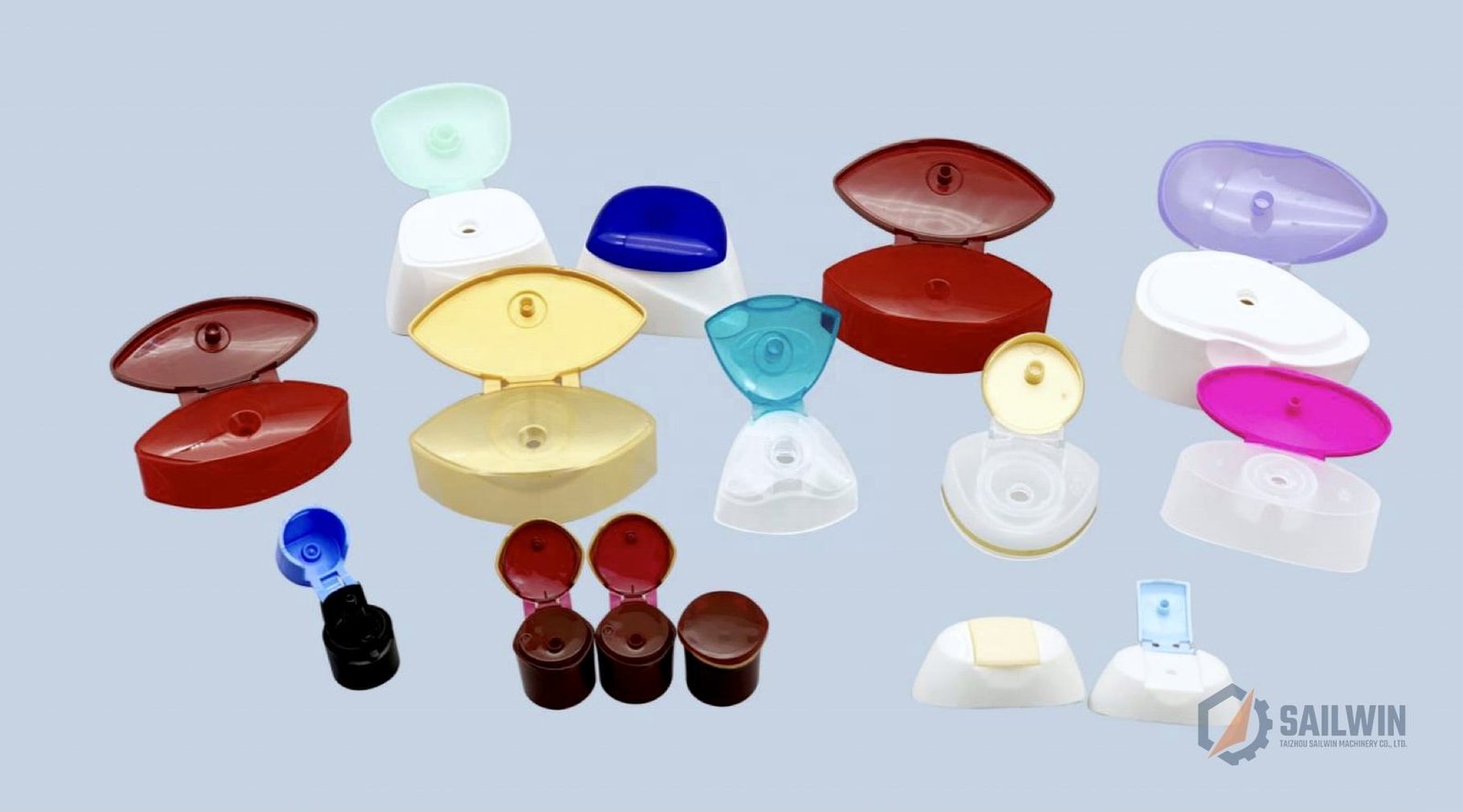

COLOR MATRIX · MULTI-SIZEMulti-Color Sauce Cap Portfolio
Production samples in red (ketchup), yellow (mustard), green (salad dressing), and white (mayonnaise). Engineered with uniform wall thickness to prevent sink marks.
- Supported Necks: 28/400, 33/400, 38/400 & Custom Snaps
- Clean Cut-Off: 0.12mm knife-edge lip eliminates sauce dribble
- Tamper Evidence: Tear-off band or shrink band retention ring
- Resin Specs: Food-grade virgin PP copolymer certified FDA compliant
| Cavity Count | Closure Type | Neck Standard | Cap Weight (g) | Cycle Time (s) | Rec. Machine Tonnage | Annual Output (8000h) | Action |
|---|---|---|---|---|---|---|---|
| 16 Cavities | Silicone Valve Honey Squeeze Cap | 38/400 Finish | 7.5g – 9.8g | 9.0s – 10.5s | 160T – 200T | 48 Million pcs | |
| 24 Cavities | Oval Ketchup Inverted Squeeze Cap | 33/400 / 38/400 | 6.5g – 8.5g | 8.5s – 9.8s | 200T – 260T | 82 Million pcs | |
| 32 Cavities | Standard 28mm Mustard Flip-Top Cap | 28/400 / 28mm Snap | 4.8g – 6.2g | 8.2s – 9.2s | 250T – 320T | 118 Million pcs | |
| 16 Cavities | Soy Sauce & Vinegar Drip-Free Pourer | 28mm / 30mm Necks | 5.2g – 6.8g | 8.8s – 10.0s | 160T – 200T | 50 Million pcs |
Need Silicone Cross-Slit Valve Retention Analysis or Food-Grade DFM?
Our tooling directors verify silicone valve retention shelf tolerances and anti-drip cut-off angles within 24 hours.
Engineering Precision: Silicone Valve Pockets & Anti-Drip
Condiment squeeze caps require precise silicone cross-slit valve retention, clean cut-off dispensing, and robust living hinges that withstand repeated family dining use.

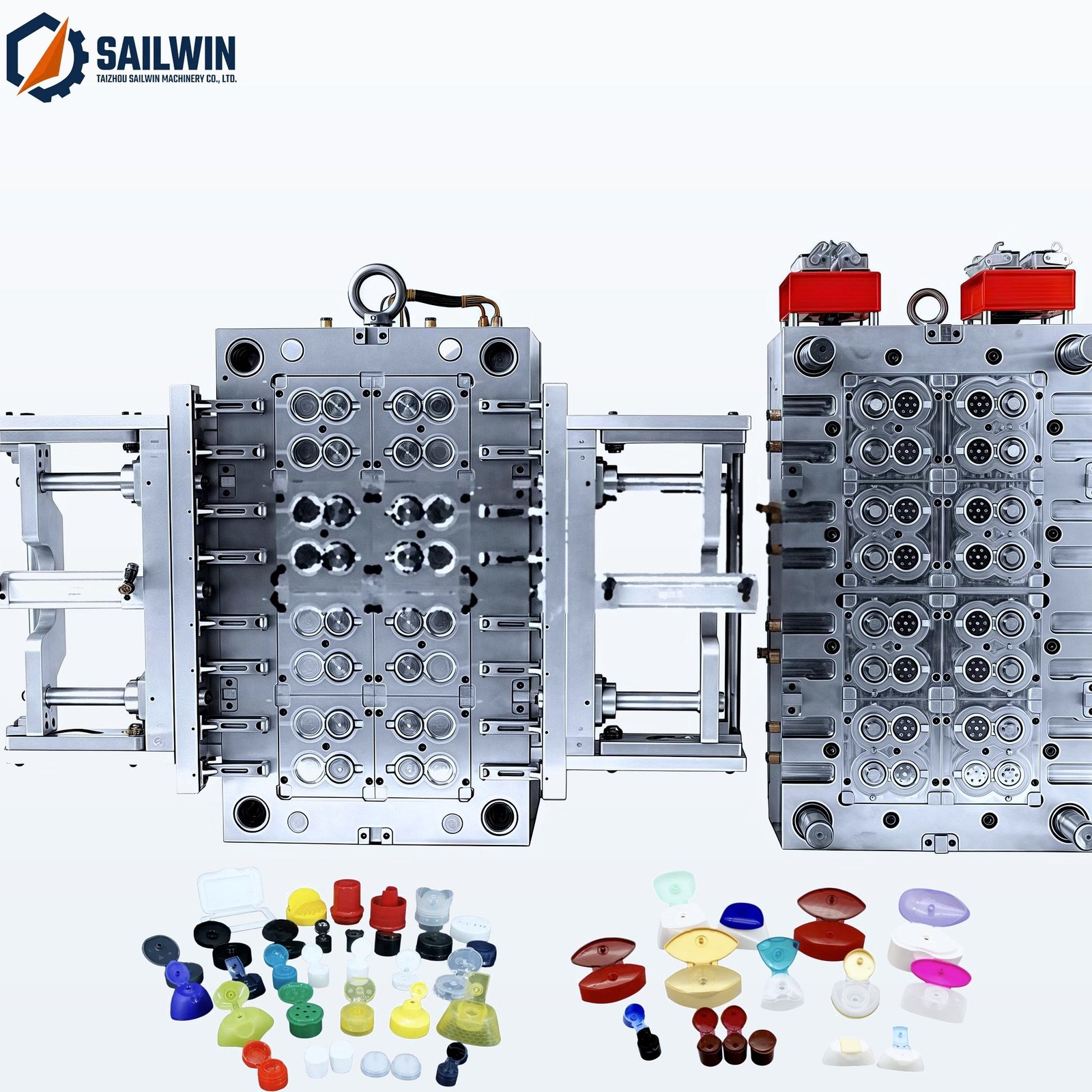

24-CAVITY BALANCED SLIDERSynchronized Dual Side-Slide Stripper
Sauce caps feature internal snap retention rings for silicone valves and exterior finger flip tabs. Sailwin designs heavy dual-direction cam slides that retract smoothly before the stripper plate stroke, eliminating cosmetic drag marks.
- • Valve Shelf Accuracy: Silicone valve retaining groove machined to ±0.005mm fit.
- • Anti-Suck Back: Molded micro-flange holds the silicone valve securely under bottle vacuum recovery.
- • Needle Valve Gating: Point gate inside the lid interior leaves zero visible mark on cap exterior.

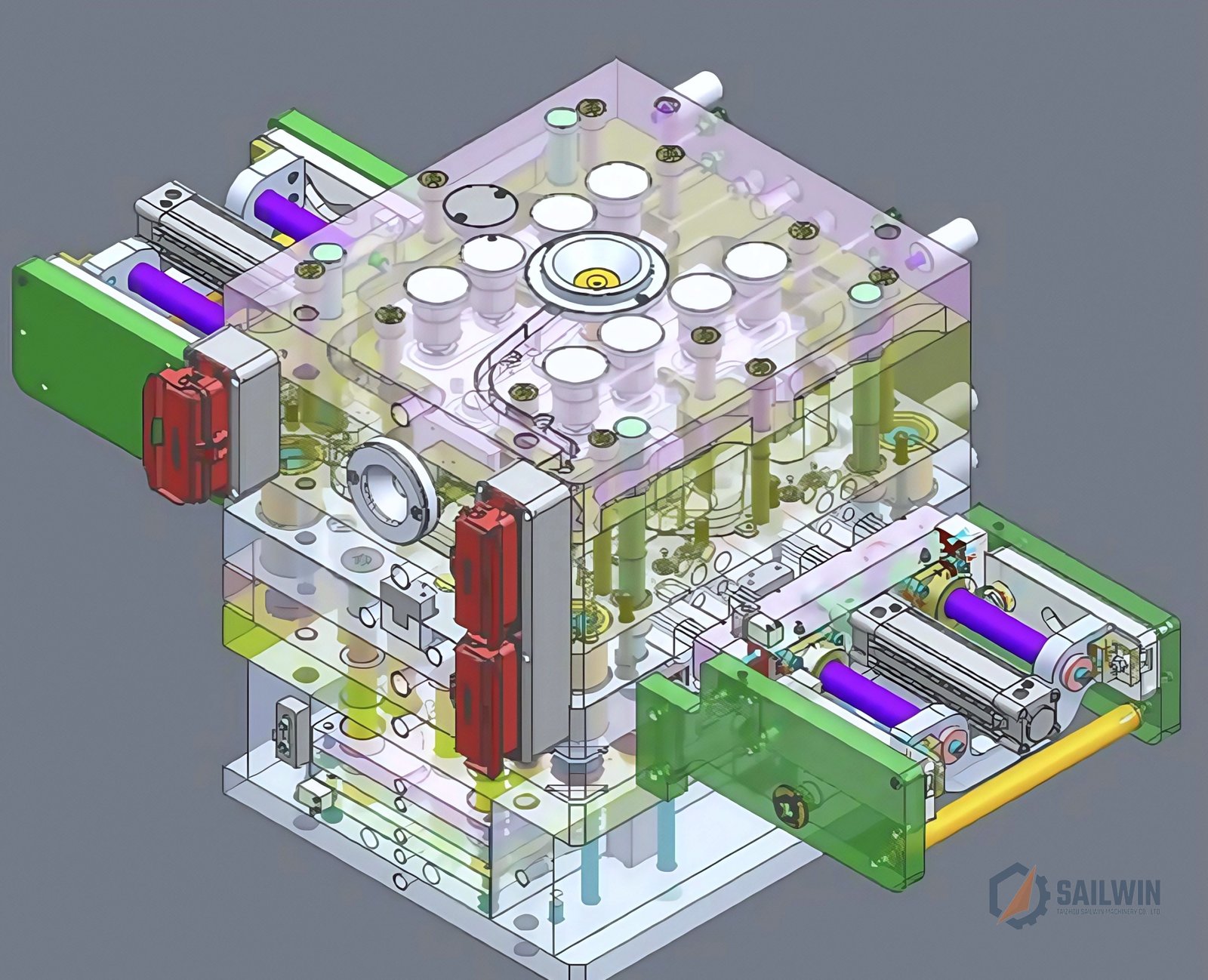

3D CONFORMAL THERMODYNAMICS3D CAD Conformal Cooling Loops & Thermal Balance
As revealed in our 3D engineering CAD wireframe models, multi-circuit water jackets wrap 360° around each cavity core and nozzle tip. This ensures uniform temperature distribution across thick base bosses and thin living hinges.
- • Cycle Acceleration: Rapid cooling cuts cycle times down to 8.2s–9.5s.
- • Zero Warpage: Balanced thermal dissipation eliminates ovality on threaded neck skirts.
- • PID Multi-Zone Control: Independent thermocouple sensing (±0.5°C) for each nozzle.

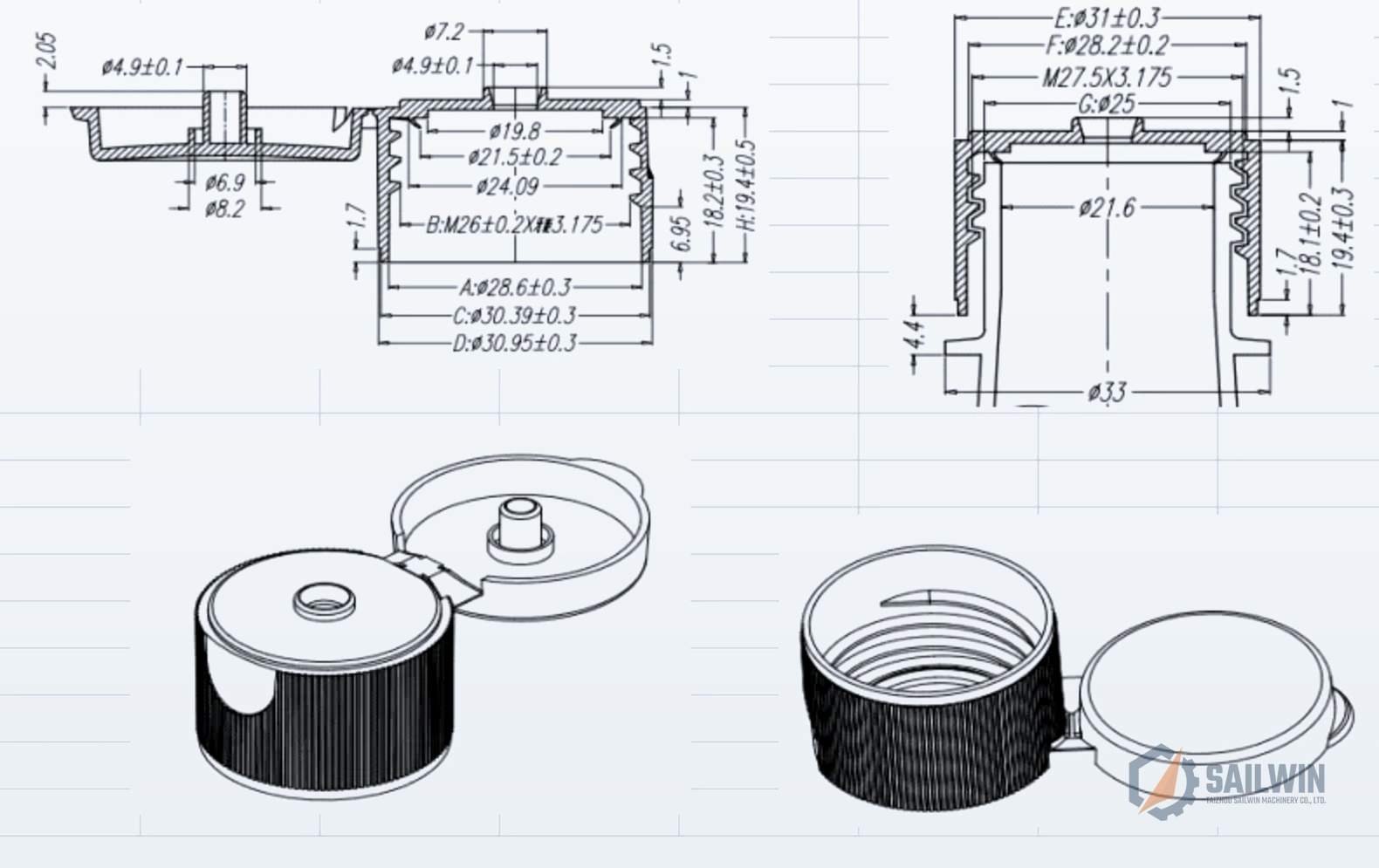

CROSS-SECTION CAD SPECS28mm Condiment Cap Cross-Section Details
Our comprehensive 2D CAD blueprint details the exact mechanical interlocks that make our sauce caps perform flawlessly in global food bottling plants:
- • Knife-Edge Drip Cut-Off: 0.12mm razor-sharp pouring lip snaps off sauce stream instantly.
- • Conical Spud Interference: Defined 0.08mm interference fit seals the orifice hermetically.
- • Living Hinge Profile: 0.32mm calibrated hinge caliper tested > 10,000 flexes without tearing.
Imported ASSAB S136 Tool Steel & Mirror Polish Precision
Condiment sauces contain vinegar, acetic acid, tomato acidity, and high salt concentrations. Sailwin builds all sauce cap cores and cavities from 100% genuine Swedish ASSAB S136 stainless steel.

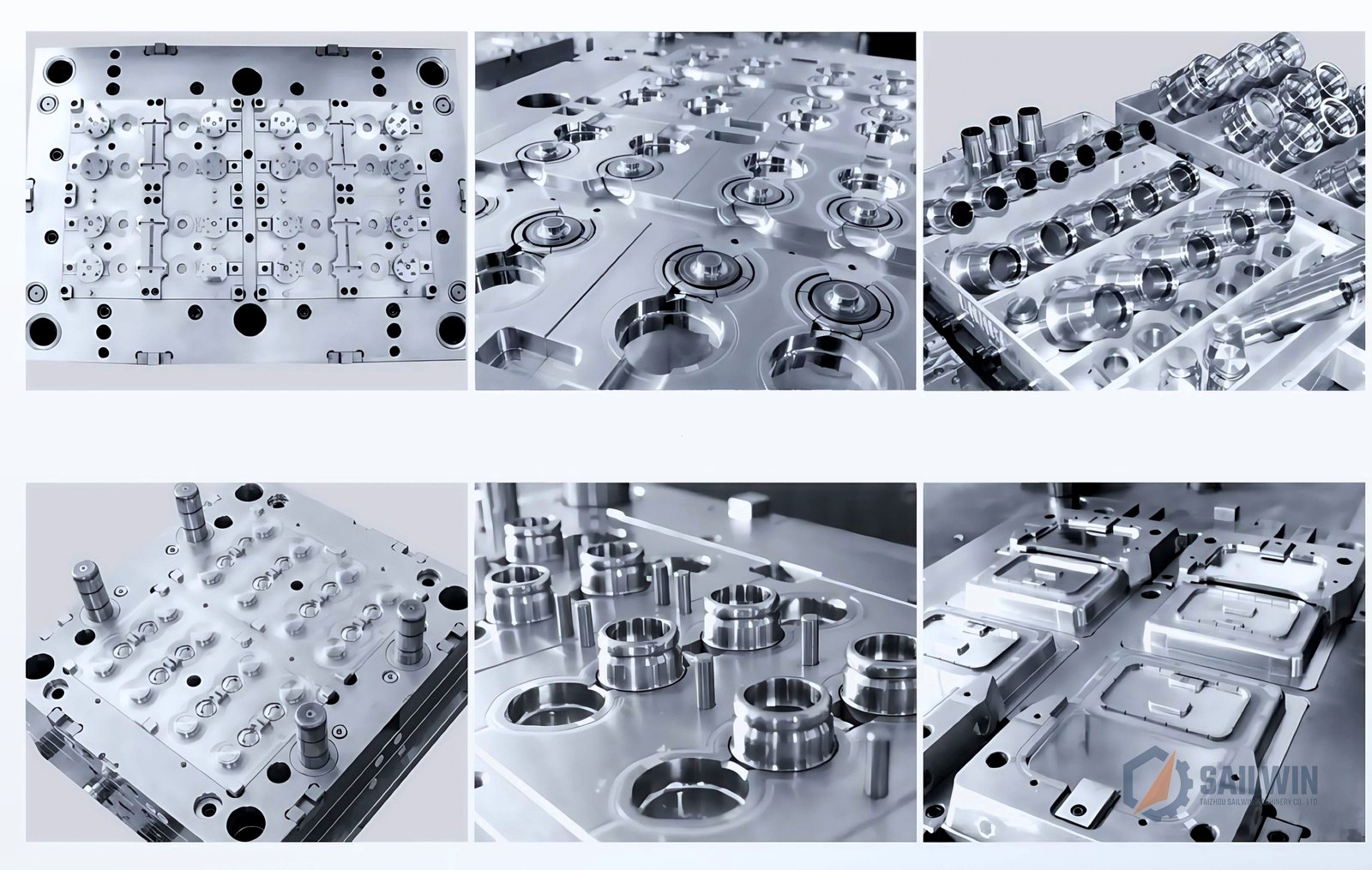

Mirror Cavity Cores with Sub-3μm Tolerance
Array of precision CNC machined S136 stainless steel cores vacuum quenched to HRC 50–52. Hand-lapped to an SPI A1 diamond paste finish, ensuring smooth release for delicate living hinges and silicone retaining ribs.
Swedish ASSAB S136 Stainless Steel
Premium electroslag remelted (ESR) stainless steel vacuum heat-treated to HRC 50–52. 100% resistant to acetic acid, food vinegar, and salt seasoning corrosion with zero surface pitting.
- Vacuum Quenching: HRC 50 – 52
- Cavity Mirror Finish: Ra 0.05 μm (SPI A1)
- Guaranteed Tool Life: 3,000,000+ Shots
- Food Acid Resistance: 100% Rust-Proof
Japanese Daido NAK80 Tool Steel
Pre-hardened mirror-grade steel used for side slide cams and stripper blocks. Delivers superior dimensional stability and high thermal conductivity to accelerate cap thread cooling.
- Hardness Delivery: HRC 38 – 42
- Slide Precision: ±0.003mm Fit
- Thermal Conductivity: 41.3 W/m·K
- Wear Surface: DLC / TiN Coated
High-Rigidity Mold Base Plates
High-tensile structural tool steel normalized and stress-relieved to prevent plate deflection under 280T clamping pressure. Preserves micro-gap flash control across all cavities.
- Base Hardness: HRC 32 – 36
- Plate Flatness: ≤ 0.015mm / Meter
- Guide Bushings: Bronze with Graphite
- Tensile Strength: 1020 MPa High Rigidity
Manufacturing Plant & In-House Machine FAT Trials
Take a virtual tour of our 15,000m² specialized closure tooling campus in Taizhou, China. Over 30 CNC machining centers, high-tonnage trial presses, and optical metrology inspection laboratories.

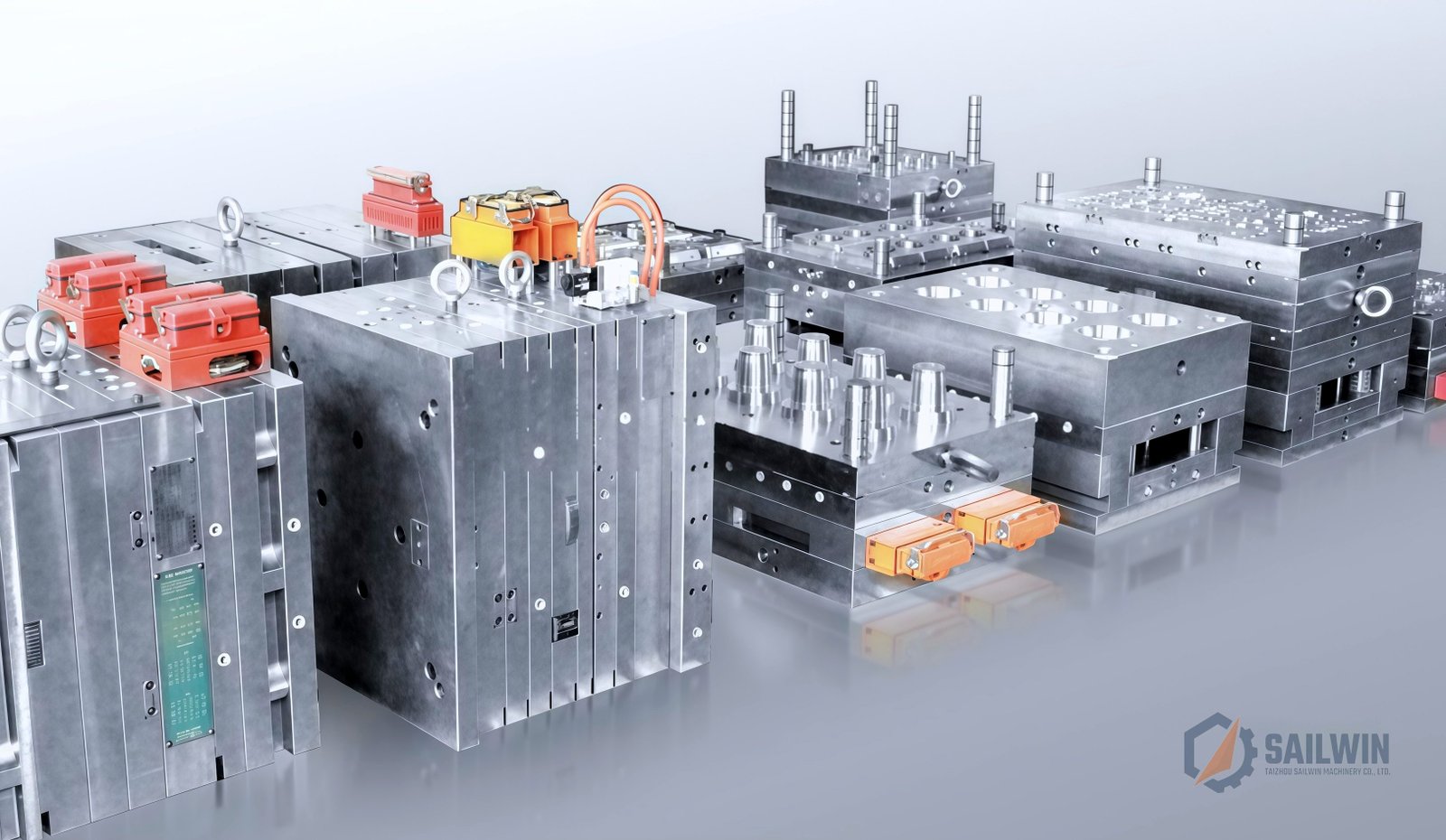

Tier-1 Food Closure Tooling Facility
Lineup of completed multi-cavity condiment cap molds ready for export packing. From 16 to 32 cavities, each mold features balanced hot runner manifolds, slide cam systems, and interchangeable cavity inserts.

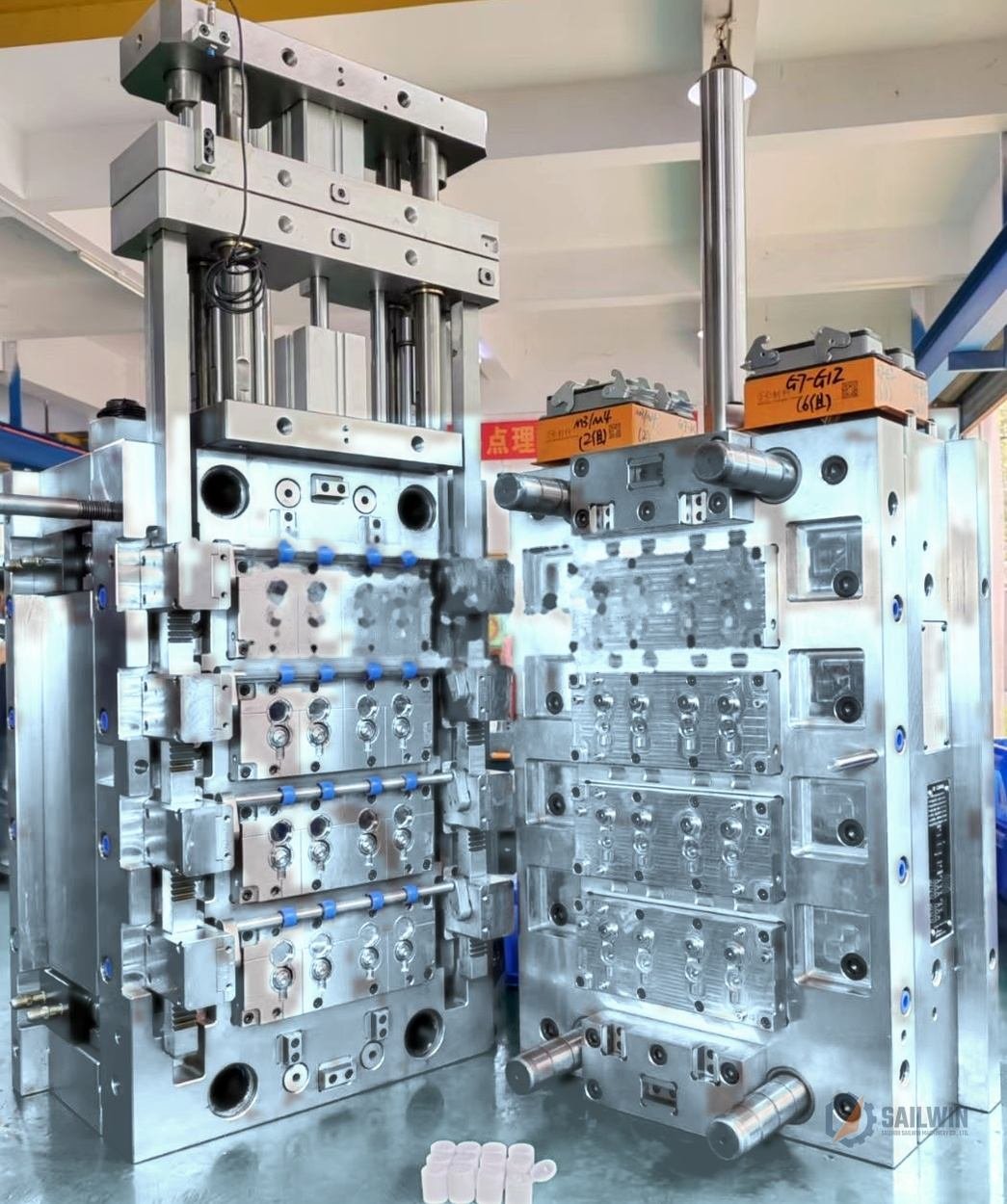

Heavy-Duty Assembly Bay Fitting
Multi-cavity flip-top sauce cap mold resting on our distressed sky-blue epoxy assembly floor. Toolmakers inspect slide travel and stripper plate synchronization prior to press loading.

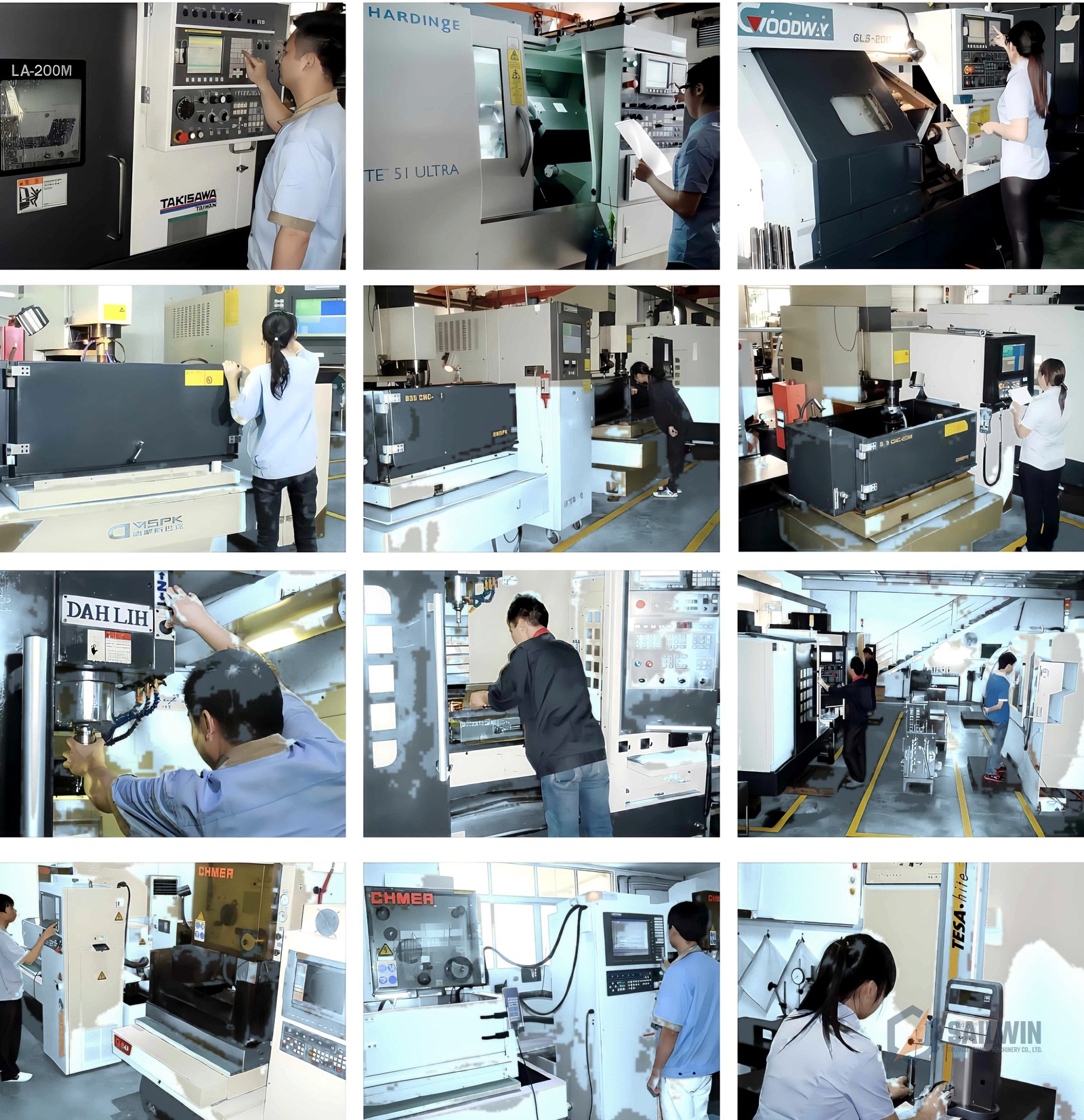

Optical Metrology & CMM Inspection
Climate-controlled quality lab equipped with optical CMM projectors and digital toolmaker microscopes verifying silicone valve retention groove tolerances within ±0.003mm.
Specialized Squeeze Closures & Tooling Navigation Hub
Engineered for viscous food sauces, liquid condiments, and dairy packaging, with direct navigation to matching stretch blow molds and preform tooling.
Target Condiment Packaging Disciplines
Tomato ketchup, mayonnaise, honey, salad dressings, and liquid seasoning.
Tomato Ketchup Squeeze Caps
Inverted standing oval flip-top caps with silicone cross-slit valves for high-viscosity tomato ketchup. Clean cut-off with zero sauce crusting.
Mayonnaise & Salad Dressing Closures
Star-shaped or round dispensing orifices with oxygen-barrier induction foil seal lands, preventing emulsion oxidation and discoloration.
Anti-Drip Honey Squeeze Closures
Engineered for high-sugar, sticky syrups. Features a sharp drip-free cut-off rim and dual-barrier seal preventing counter-top stickiness.
Soy Sauce & Seasoning Pourers
Two-speed controlled flow pourers for table soy sauce and balsamic vinegar with anti-reflux air vents ensuring smooth non-surging pouring.
Zero-Leakage Benchmark for Multinational Sauce Brand
A global food condiment producer installed our 24-cavity inverted squeeze cap molds for a nationwide ketchup bottle line. Running at 8.5 seconds cycle time across 3 shifts, the client delivered over 80 million caps annually with zero silicone valve detachment claims and perfect upside-down retail shelf stability.
Turnkey Downstream Tooling & Sub-Pages
Explore matching blow molds, preform molds, and parent category collection hubs.
Edible Oil Spout Cap Molds
16 to 32 cavity pull-ring spout cap molds with synchronized slide strippers and leak-proof inverted plugs.
PET Preform Injection Molds
8 to 96 cavity valve-gate preform molds engineered for thick-wall wide-mouth and squeeze condiment preforms.
Condiment Bottle Blow Molds
Alloy 7075-T6 stretch blow molds engineered for inverted squeeze ketchup and salad dressing containers.
Plastic Injection Molds Hub
Explore all 9 closure categories, preform tooling systems, and custom precision plastic injection tooling.
Frequently Asked Questions on Sauce Cap Molds
Explore engineering insights regarding silicone valve retention, anti-drip cut-off orifices, butterfly living hinge flex life, and food-grade acid-proof metallurgy.
Silicone valve blow-out during bottle squeezing ruins product dispensing. Sailwin ensures fail-safe valve retention through:
- Precision Undercut Retaining Shelf: Our core tooling molds a dual-tier circular retention shelf with ±0.005mm dimensional accuracy to seat the silicone flange.
- Positive Mechanical Snap Ring: Either an ultrasonic welded retaining collar or an integral molded snap-ring firmly clamps the valve perimeter.
- 1.5 Bar Squeeze Test: Molded cap assemblies withstand over 1.5 Bar continuous internal squeeze pressure without valve dislodgement or peripheral leakage.
Crusted dried sauce around ketchup nozzles is unhygienic. Our sauce cap molds eliminate sauce crusting via:
- Sharp Drip-Cut Orifice Lip: The dispensing nozzle exit features a razor-sharp 0.12mm radius edge that snaps off viscous sauce strings immediately when bottle pressure is released.
- Instant Slit Retraction: The silicone valve's cross-slits snap closed in milliseconds, pulling residual sauce droplets back inside the chamber.
- Conical Spud Cap Plug: The flip lid's conical interference plug seals directly inside the orifice throat, preventing airborne air exposure.
Condiment caps are opened and snapped closed multiple times daily during family meals:
- Parallel Molecular Alignment: Gating locations direct molten PP parallel to the living hinge axis, creating oriented molecular chains that bend without stress whitening.
- Calibrated Hinge Caliper: The hinge web is micro-machined to 0.32mm ±0.01mm with smooth 0.35mm transition fillets cut via slow-wire EDM.
- Automated Flex Testing: Production samples undergo automated 180° mechanical flex testing, exceeding 10,000 cycles without fatigue tearing.
Food condiments contain high concentrations of acetic acid, citric acid, and salt:
- 100% Swedish ASSAB S136: Cores and cavities are vacuum heat-treated to HRC 50–52, providing total chemical corrosion resistance against aggressive food acids.
- Optical Mirror Lapping: Diamond paste hand-polishing (Ra ≤ 0.05μm) creates a glass-smooth surface that resists corrosion pitting and bacterial adhesion.
- 3,000,000+ Shots Guarantee: Backed by written warranty with serialized spare cavity inserts and slide cams on shelf.
Output is optimized for high-volume contract condiment filling lines:
- Molding Cycle: Standard 38/400 condiment squeeze caps run at 8.5s to 9.8s on a 250T servo-hydraulic injection press.
- Annual Capacity: A 24-cavity mold yields over 82 million caps annually operating 24 hours/day for 330 days.
- Brass Cooling Inserts: High-conductivity inserts around nozzle gates chill the thickest valve pocket regions in <3.5 seconds.
Need Squeeze Bottle Finish Verification or Inverted Stand Stability Analysis?
Our tooling directors evaluate 3D condiment closure models and bottle shoulder fits within 24 hours.
Scale Production with High-Precision Food Sauce Cap Molds
Partner with Sailwin — your certified food packaging cap mold maker. Submit your cap samples, 3D bottle neck models, or silicone valve specs for a complimentary DFM analysis, moldflow fill simulation, and itemized quotation within 24 hours.
